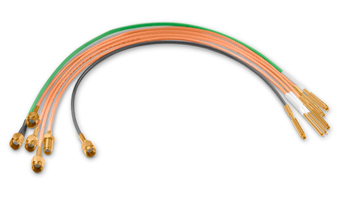

Coaxial Probe with Cable

Smiths Interconnect offers the industry's most extensive line of high reliability coaxial probes. Our coaxial probes provide a low noise, controlled impedance signal path with reliable and easy connect/disconnect options.

Download Brochure

Features & Benefits

  • 100526, 100445, 100746 and 100999 Series probes
  • 0.150" and 0.200" centers
  • 50 Ω impedance (75 Ω or other impedance designs available)
  • Bandwidths of 3 GHz for coax probes with shielding plungers
  • Bandwidths of 500 MHz for non-shielded designs
  • Option of pre-attached cable and a standard SMA connector
  • 100999 coax probe has a notched, non-rotating shielding plunger
  • IDI Spring Probe technology

Product Specifications

Probe Centers Probe
OAL		 Max
Travel		 Impedance
100526
Series		 0.150
(3.18)		 1.300
(33.02)		 0.090 (2.29) (tips B,J,U)
0.075 (1.91) (tips ES, H)		 50 Ω
100445
Series		 0.200
(5.08)		 0.820
(20.83)		 0.090 (2.29) (tips B,J,U)
0.075 (1.91) (tips ES, H)		 50 Ω
100746
Series		 0.200
(5.08)		 0.820
(20.83)		 0.090 (2.29) (tips B,J,U)
0.075 (1.91) (tips ES, H)		 50 Ω
100999
Series		 0.200
(5.08)		 1.419
(35.81)		 0.090 (2.29) 50 Ω

Dimensions are in inches (mm) | All specifications are subject to change
