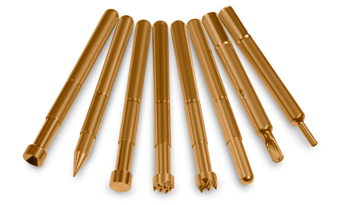

0.187" Centers High Current

High Current Spring Probes

The SH Series features a bias ball, which is the most aggressive biasing technique to aid in assuring a low and consistent resistance, cycle after cycle. The SHE Series features a bias spring, an effective biasing technique for many applications.

Download Brochure

Features & Benefits

  • SH-5 and SHE-5 Series probes and receptacles
  • 23 A and 39 A current ratings
  • 18.70 oz. spring force
  • 1.420" (36.07 mm) overall length
  • IDI Spring Probe technology

Product Specifications

Probe Centers Probe OAL Max Travel Current Rating Mating Receptacle
SH-5      Series 0.187 (4.75) 1.420 (36.07) 0.250 (6.35) 39 A
Continuous		 RH-5
Series
SHE-5
Series		 0.187 (4.75) 1.420 (36.07) 0.250 (6.35) 23 A
Continuous		 RH-5
Series

Dimensions are in inches (mm) | All specifications are subject to change.

Receptacle Tooling

Receptacle Insertion Tool
RH-5 Series RT-5
