D Series Connectors
Quick Disconnect Plastic Connectors
- Virtually intuitive mating, D-shaped housings prevent mismating
- Hybrid signal, power and coaxial contact technologies
- Housing alignment and polarization
- Disposable and reusable versions available
- Custom cable assemblies available
Eclipta™ - ECL Series
Featuring Edge Card Technology
- Double-ended edge card contact design
- Mates to PCB board on the disposable connector side
- High mating cycle life
- Plug and play design
- Meets typical sterilization requirements
- Quick intuitive mating
- Embedded electronic feasible

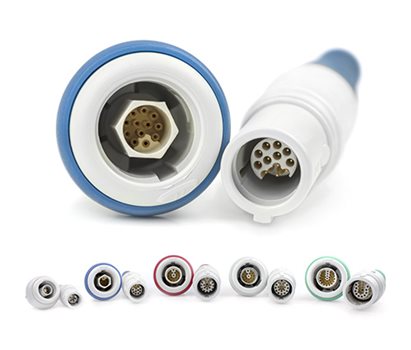

Hypergrip Connectors
Circular plastic, user-configurable, color coded connector
- 5, 12 19 and 33 contact positions1 A per contact
- IP65 sealed when mated
- EMI/RFI shielding option
- Push/pull latching design
- Ideal for disposable applications
- 6 Keyable positions
- 5 color options
- Featuring Hypertac technology

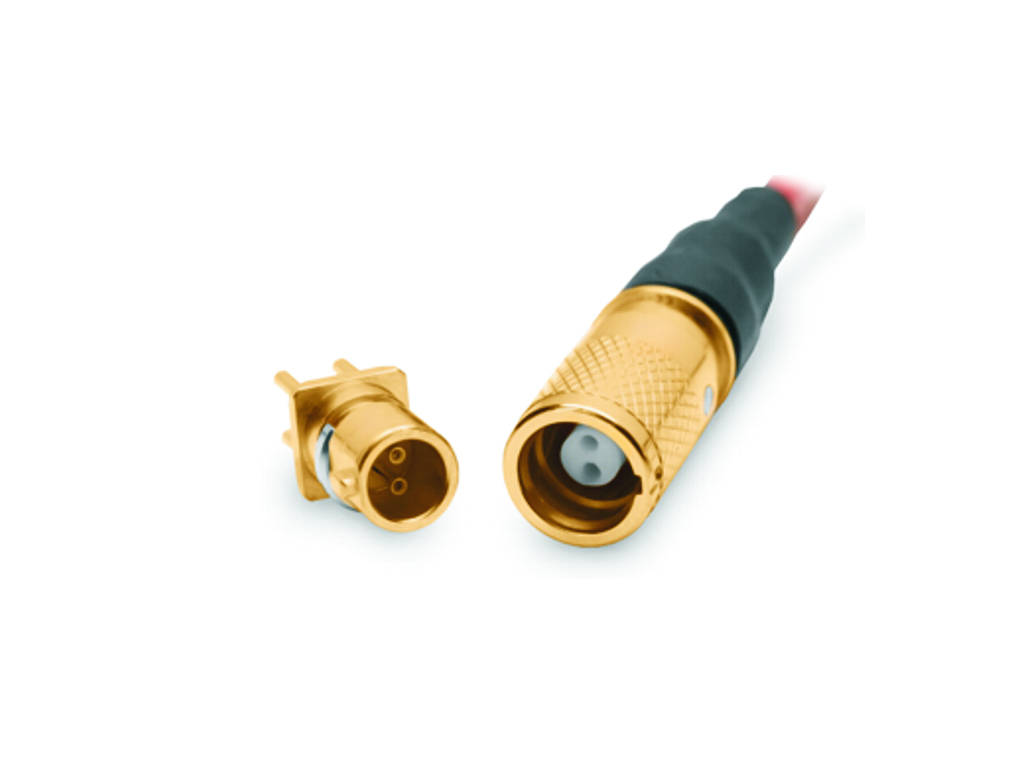

Micro Quadrax/Twinax
NDL, SMA and Micro-D Size Shells
- 25% smaller in diameter than SMA coaxial connectors
- Controlled impedance with tightly spaced PCB footprint spacing
- Cable assembly options available
Smiths Interconnect expands product offering for demanding medical applications
The new D04 connectors offer high density while maintaining high cycle life.
New Custom Grid Array technology for medical applications
Using spring probe and target contacts to deliver the same RF performance as cabled coaxial solutions, with improved signal integrity.
Expanded product offering for disposable healthcare applications
The new disposable connector plug leverages the versatility of the Hypergrip® Series to deliver a reliable interconnect solution for single or few uses, ideal for applications that don’t require high cycle life but still require a premium disposable connector mated with a high cycle receptacle.
Hypertac® hyperboloid contacts now available for off-the-shelf sale through the HYPER Series catalog
The HYPER Series catalogue offers 51 hyperboloid contacts in 14 different pin dimensions, from 0.4mm diameter for signal contacts to 6.12 mm for high currents, with different termination types (crimp, solder cup, straight, open both ends and closed end) and platings.
D Series Connectors for Autoclaved Medical Devices
Smiths Interconnect D Series connectors are a high reliability alternative to premium priced autoclave compatible connectors.
