Galileo Test Socket

Elastomeric Solutions for Digital High Speed & PoP Test

Banner Image ALT

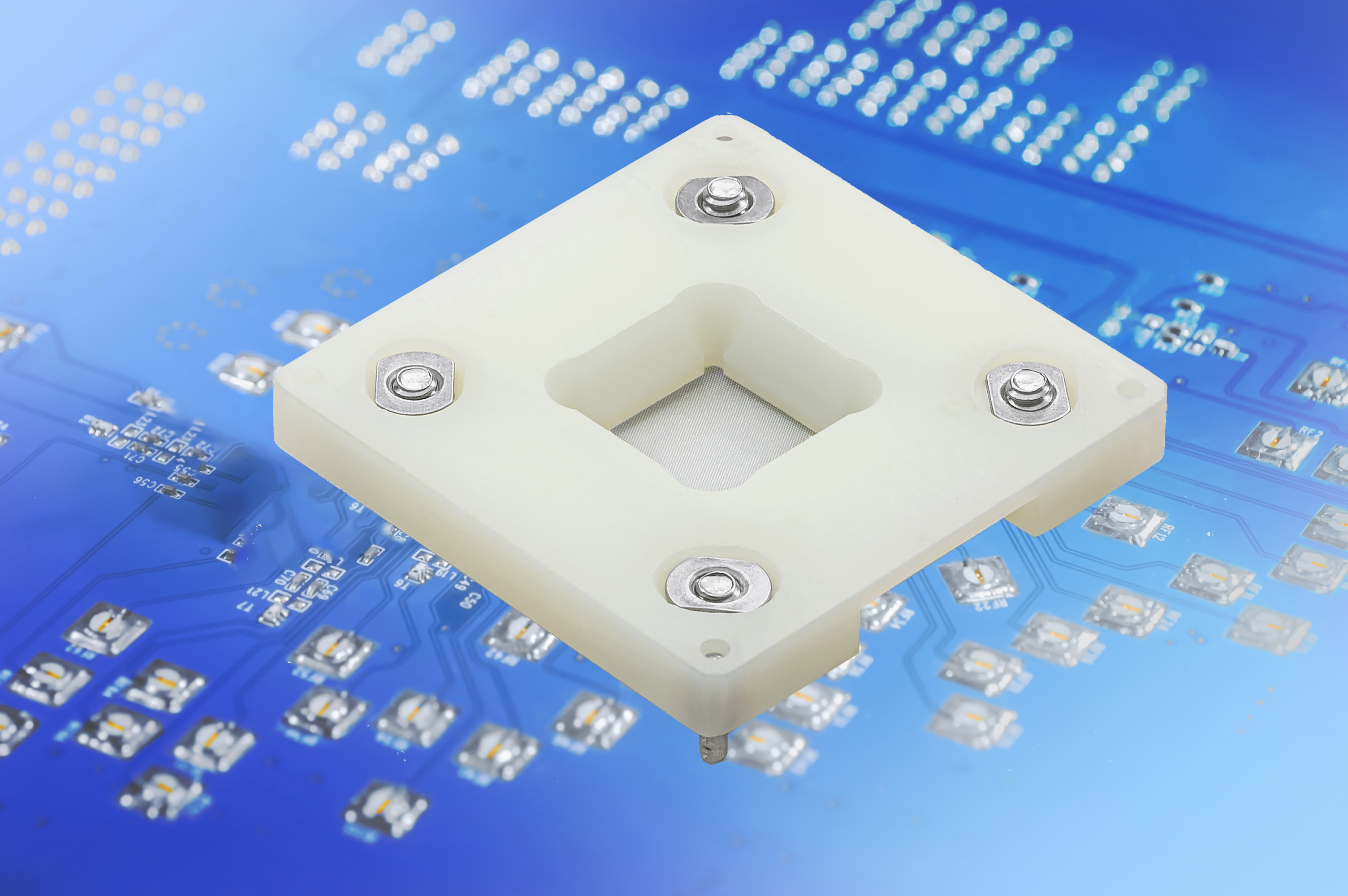

Galileo is an innovative, low-profile test socket engineered to support today’s high-performance Digital and RF applications. Using a unique “universal” elastomer contact assembly, Galileo supports almost any standard package pinout, on any pitch (or multiple pitches) at >0.35mm, in any configuration, with no extra tooling charges. A single socket can be re-used across multiple pitches and pad/ball placement. In addition, no contact alignment or registration holes are required in the PCB, enabling quick and easy board integration.

For advanced node devices, solder-down performance is becoming a requirement for characterization, debug, and Failure Analysis testing.

Brochure Technical Specifications

Patented, low profile contact
- Solderless memory replacement
- Short signal path
- Conformal to recessed LGAs
High speed signal integrity
- Electrically transparent contact
- High frequency bandwidth > 40GHz
- Low inductance
Durability
- No PCB or solder ball damage
- Minimal labor and tester downtime
Engineering expertise
- Monte Carlo Analysis
- Thermal Analysis
- RF Simulation

Test Socket Applications

Test Socket Applications

Bench Test

Characterization

Failure Analysis / RMA

System Level Test

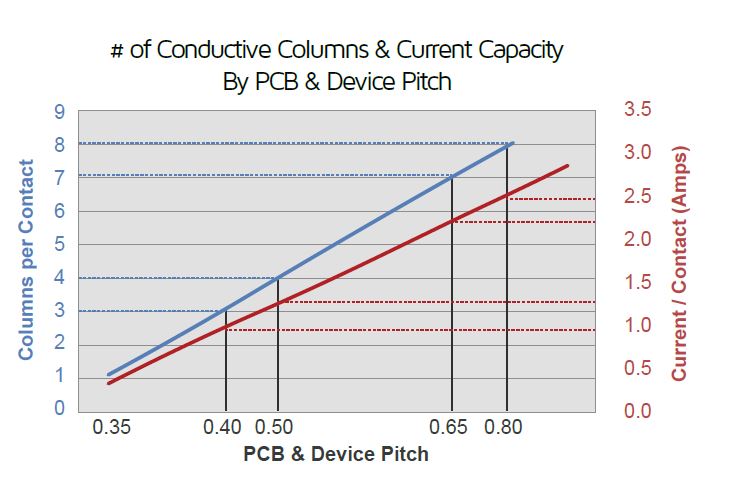

Electrical Properties

Electrical Properties

Continuous current (per lead*): 5.3A @ 20°c heat rise

Pulse current 1% duty cycle (per lead*): 5.3A @ 20°c heat rise

Insertion Loss (S21): 40Ghz @ -1dB

Impedance: 0.080nH

Rise Time Delay (TDT): 3 pieces (per 4mm x 4mm area)

Thermal Resistance: 188.1K/
