HBB Series Five Pole

In a very tight space customers can run five power lines which increases the connectors’ flexibility and offers the ability to run redundant lines as required.

Banner Image ALT

  • The Smiths Interconnect’s HBB 5 pole, circular connectors Series combines high current handling
    capability with small size and exceptional performance in harsh environments. Designed for use in all types of high-power applications, the HBB Series is particularly suitable for electric drives used in fighting vehicles, unmanned vehicles, rail transport and industrial applications.

    HBB Five Pole Connectors Include a quick latching mechanism and a safety interlock system with 2 “last mate first break” contacts, enabling automatic power shut-off when connectors are unmated.

    HBB five-pole connectors are in addition to the already existing single-pole version.


Download Brochure Technical Specifications

Single Pole Series

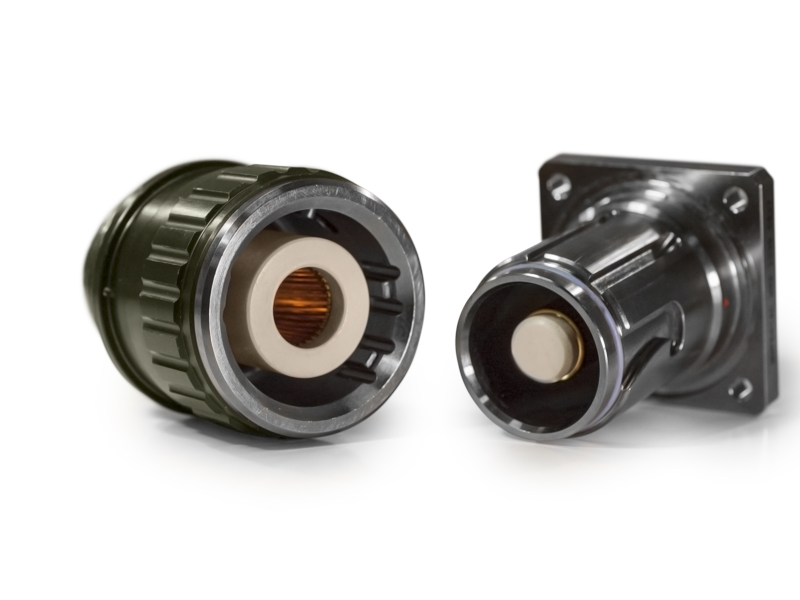

High Reliability SolutionHBB Single Pole ConnectorsSingle Pole Series

  • 50A and 500A High power handling in a smaller space
  • 5000 mating cycles
  • Low contact resistance, less than 0.05mΩ
  • Shock and vibration immunity

Easy of assembly and of use

  • Gender reversible
  • Polarised system
  • Minimal component count
  • Quick release latching mechanism
  • Simple maintenance and speedy changeover

Ideal for harsh environment conditions

  • 360° EMI/RFI shielding
  • Sealed IPx7 and IP6K9K when mated
  • Safe solution with finger protection

Smart and flexible design

  • RoHS compliant Black Zinc Nickel, zinc-cobalt plated or nickel plated shells
  • Cable and panel mount variants
  • Ergonomic, low weight design
LEARN MORE

Hyperboloid Technology

Featuring  Hypertac hyperboloid contact technology:

  • Low cost of ownership - Does not need replacement during equipment life
  • Reduced system costs - Equipment design is less critical
  • Reduced qualification costs - No re-testing due to contact failureshyperboloid
