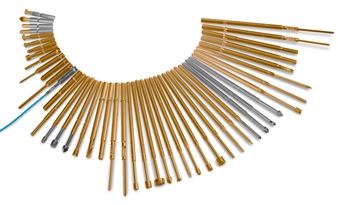

Features & Benefits SS, GSS, S-2, S-100, ICT-100, ICT-100 Lead Free, S-100 Rotator, ICT-L100 Series probes and receptacles 3 A current rating Spring force options between 3.50 and 10.00 oz. ≤ 1.460" (37.08 mm) overall lengths IDI Spring Probe technology Lead Free probe design is based on the ICT probes. The plunger material, plating and tip geometry have been optimized to provide less wear and contamination build-up while using a moderate spring force of 7 to 8 ounces. Rotator probes, ideal for non-clean and lead-free applications, rotate 90° at the rated travel, virtually drilling through contaminants with a low spring force.
Product Specifications Probe Probe OAL Max Travel Mating Receptacle SS Series 0.345 (8.76) 0.060 (1.52) RSS-100 Series R-100/SS Series R-SS/SS Series GSS Series 0.345 (8.76) 0.060 (1.52) RSS-100 Series R-100/SS Series R-SS/SS Series S-2 Series 0.970 (24.64) 0.160 (4.06) R-2 Series S-100 Series 1.310 (33.27) 0.250 (6.35) R-100 Series R-100/SS Series ICT-100 Series 1.310 (33.27) 0.250 (6.35) R-100 Series R-100/SS Series ICT-100 Lead Free Series 1.310 (33.27) 0.250 (6.35) R-100 Series S-100 Rotator Series 1.310 (33.27) 0.220 (5.59) R-100 Series ICT-L100 Series 1.460 (37.08) 0.400 (10.16) R-100 Series R-100/SS Series Dimensions are in inches (mm) | All specifications are subject to change.
Receptacle Tooling Receptacle Insertion Tool Crimping Pliers RSS-100 Series RT-SS-100 CP-SS-100 (for 28-30 gage solid conductor) R-100/SS Series RT-100 N/A R-SS/SS Series RT-100 N/A R-2 Series RT-100 CP-2 (for 22-26 gage solid conductor) R-100 Series RT-100 CP-2 (for 22-26 gage solid conductor) View full tooling guide
Documents & Literature Data SheetStep FilesUser GuideStandard Series 0.100 Centers13744 kBS and ICT 100 Probes372 kBS-2 Series Probes130 kBICT-L100 Probes64 kBSS and GSS Probes66 kBR-2 Receptacles124 kBR-100 Receptacles147 kBR-SS-SS Receptacle10.2 kBR-100-SS Receptacle8.3 kBRSS-100 Receptacles86 kBBoard Test Receptacle Tooling Guide75 kB
