Filter Combo D-Sub Connectors

MIL-DTL-24308, MIL-DTL-83513 Micro-D Style Connect

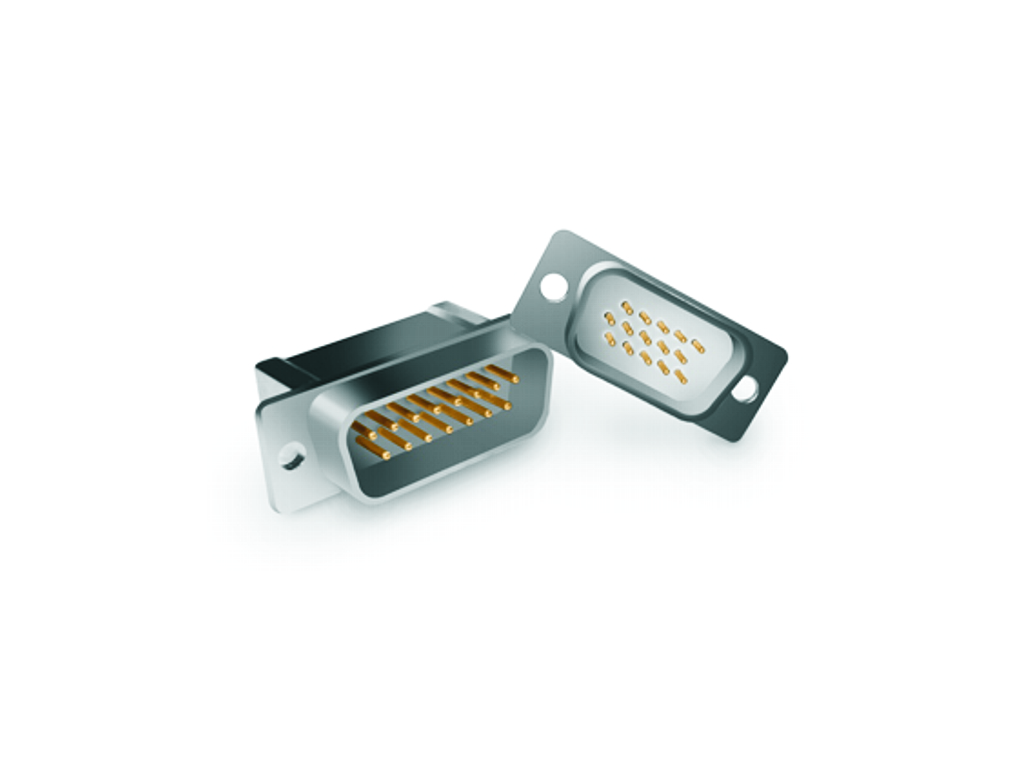

Complete line of high powered EMI filtered D-Sub connectors including the single row size #8 power contacts (3W3, 3WK3, etc.). With the addition of Smiths Interconnect's in-house production of ceramic planar capacitors, we can easily achieve up to 47 nF per line on this series.

Download Brochure

Features & Benefits

  • EMI/RFI filtering and transient protection
  • Intermateable and Interchangeable with standard non-filter connectors
  • Exceed all applicable requirements of defense specifications
  • PC tail, solder cup, and solderless press-fit terminations

Overview

The planar capacitor provides excellent attenuation as well as meeting the Bellcore requirements for 1000 VDC Dielectric Withstanding Voltage. The materials used in the construction meet the UL flammability requirements of 94V-0. Sabritec’s filtered D-Subminiature connectors are intermateable with standard non-filter D-Sub connectors.

This series is available in PC tail, solder cup and solderless press-fit terminations into standard plated-thru holes. We also offer combo d-sub arrangements for power coaxial and signal contacts mixed arrangements including layouts 5W5, 8W8, 17W2, 9W1, and 24W7.
