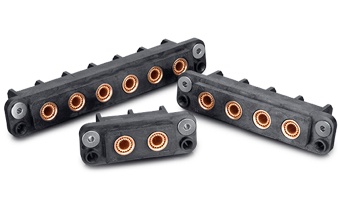

LSH Series

High Power Rack and Panel Connectors
The LSH rack and panel connectors include leading-edge Hypertac® hyperboloid technology. The Polyphenylene sulfide (PPS) insulators interconnect technology ensures LSH connectors are easy mating. The LSH Series delivers customers a high life cycle.
Request a Quote
Technical Specification
Request More Info
3D Configure
Distributor Stock Check
Information about Restricted MaterialsRestricted Materials compliance logo

Notice to California Residents: PROPOSITION 65 WARNING Click Here for details.
To find out if part number(s) meet regulatory substance or materials compliance (e.g., REACH, RoHS, or any other regulatory requirement) Contact us for compliance verification.

Features & Benefits

  • 200 amps per contact
  • 1 to 6 contacts
  • Very low mating forces
  • Radial float .049" (1.25mm)
  • Threaded terminals
  • One row .925" (23.50mm) centers
  • .239" (6.08mm) contacts
  • Blind mate capability

Overview

The LSH rack and panel connector series from Smiths Interconnect is utilized across many different market segments including aerospace, automotive, industrial, test and measurement, and mass transit. The foundation upon which the LSH is built is the leading-edge Hypertac® hyperboloid contact technology. This world class interconnect technology ensures LSH connectors are immune to shock, vibration and fretting. In addition, it features the low insertion and extraction forces that are a catalyst for easy mating. The LSH Series delivers customers a life cycle that can be maintained for 100,000+ mating cycles and at an extremely low cost of ownership.
