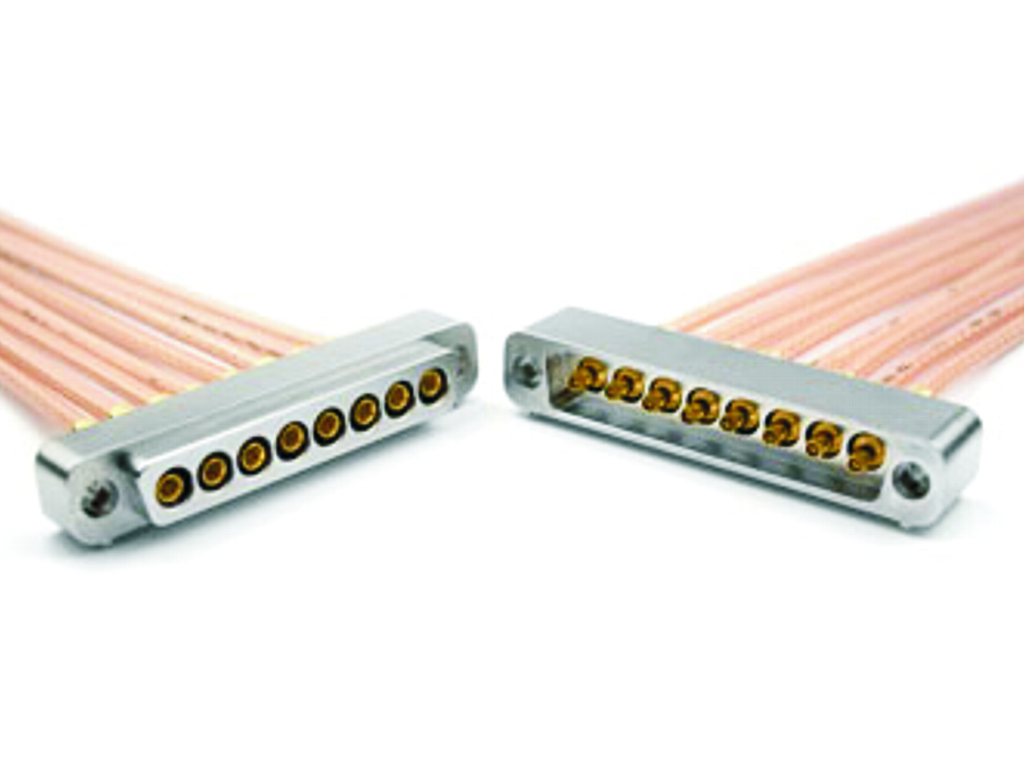

MDCX Series

High Frequency Multipin Coax Connectors

Smiths Interconnect's multipin coax connectors MDCX offer low VSWR of 1.25:1 (typ) up to 10 GHz (max mated pair), maximum overall diameter of 0.125" fitted into low-profile micro-D housing, constant 50 Ohm airline impedance.

Features & Benefits

Multipin coax connectors (MDCX) have low VSWR of 1.25:1 up to 10 GHz (max mated pair). Each spring loaded contact has a maximum diameter of 0.125" fitted into low profile metalized housing. MDCX coaxial contacts are compact in size allowing multiple high density connections in a Micro-D style shell for applications where space and weight savings are important. No cumbersome spring mounts are required. These connectors are also available with locking post mechanisms or blindmate hardware attachment.

  • MDCX VSWR of 1.25:1 (typ) up to 10 GHz (max mated pair)
  • Maximum overall diameter of 0.125" fitted into low-profile Micro-D housing
  • Constant 50 Ohm airline impedance
