SpaceNXT™ HC Series is specifically designed and tested to meet the space orbit environmental criteria. It is offered in a high-volume solution that leverages the Smiths Interconnect’s space heritage to improve reliability and performance over a QPL or COTS product. Available from a standard part list that eliminates the need for timeconsuming drawings and specifications, the SpaceNXT™ HC Series provides an easy-to-use and cost-effective solution with proven mission assurance. This series is supplied with all the necessary test and qualification data to ensure space flight compliance.

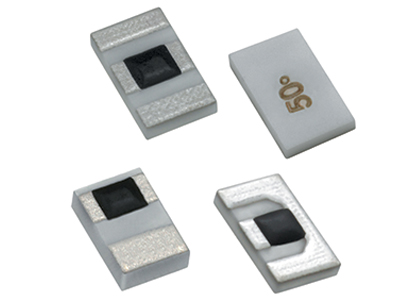

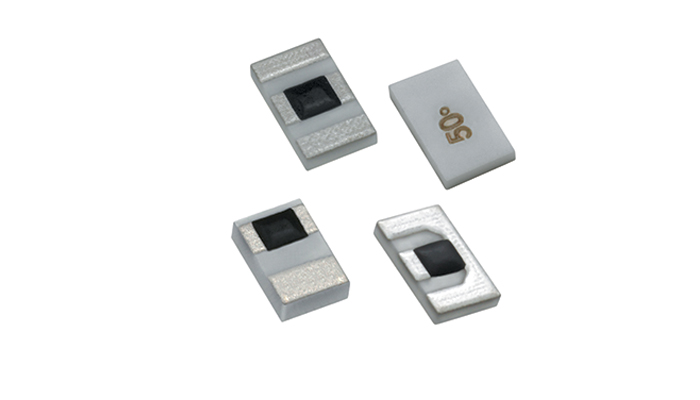

The new SpaceNXT™ HC-CXH Outrigger Resistors and Terminations use a patented layout to offer improved power handling over conventional surface mount solutions without compromising broadband performance. This makes the HC-CXH products suited for a wide array of RF applications, particularly in the Space and Defence markets. The power increase from the patented design (US 8, 994, 490), with added solderable outrigger pads on the sides of the chip, allows to dissipate significantly more power through the extra thermal paths (approximately 50% more than conventional flip chip solutions).

The HR-CXH Resistors and Terminations are designed for surface mount (SMT) applications, manufactured using robust thick and thin film process technology, are lead free and RoHS compliant. The products are screened based on MIL-PRF-55342 to ensure long term reliability. Flight units come with 100% group A screening with optional Group B and C qualification. Smiths Interconnect offers multiple footprints, power handling and material options, resulting in design flexibility and adaptability.
