Optimized and qualified for next generation Electronic Control Units the Intercompact Series is an innovative solution for PCB to PCB and floating mouting rack and panel applications currently offered in both signal and Ethernet versions. Designed to meet the requirements of the rail and industrial environments, it is also suitable for other demanding markets such as defence, space and test & measurement.
Intercompact Series
- 60 and 41 way signal configurations with Hypertac® Hyperboloid contacts.
- 42 ways signal and 1 or 2 high speed quadrax 100 Ohm contacts as Ethernet versions. Additional contact positions can be offered depending on the specific application requirements.
- Compliance with the main European Railway standards (EN45545-2, NF F61030, EN50155:2017, STM-S-001ind.D and more).
- Compliance with MIL-C-28748 and MIL-STD-202-301 standards and EIA and IEC standards for Contact Resistance and Environmental testing.
- Insulators in Liquid Cristal Polymer material for an optimized insulation resistance in severe environment conditions.
Hyperboloid Technology
Featuring Hypertac hyperboloid contact technology:
- Low cost of ownership - Does not need replacement during equipment life
- Reduced system costs - Equipment design is less critical
- Reduced qualification costs - No re-testing due to contact failures
High Speed Quadrax
Featuring High Speed Quadrax contact technology:
- Designed for transmission of Ethernet high speed signal up to 100 MHz in harsh environments where integrity and reliability are essential
- Ethernet standard: Ethernet 10-Base-T / 100-Base-Tx - Category 5E
- RoHS compliant with Exemption 6c
Application Success
Intercompact connector series consolidates the strong partnership with Grafikontrol

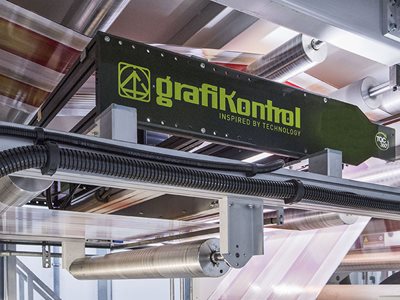

Grafikontrol recently turned to Smiths Interconnect for an interconnect solution; this was for a new register control system for automatic graphic control in machines for commercial and newspaper printing. In response, the new Intercompact connector Series was the natural proposal to the above demands as these new connectors had just been optimized and qualified by Smiths Interconnect for the new generation of Electronic Control Units.
