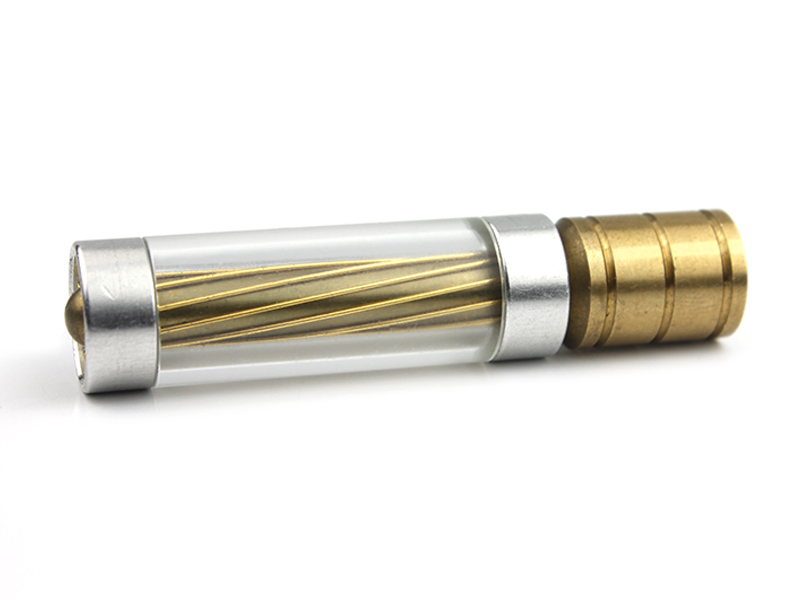

Advanced hyperboloid contact technology that satisfies the most demanding performance requirements. The shape of the contact sleeve is formed by hyperbolically arranged contact wires, which align themselves elastically as contact lines around the pin, providing a number of linear contact paths. Low cost of ownership - Does not need replacement during equipment life.
Features
- Low insertion/extraction forces
- Long contact life
- Lower contact resistance
- High current ratings
- Immunity to shock and vibration
Benefits
- High density interconnect systems
- Low cost of ownership
- Low power consumption
- Maximum contact performance
- Reliability under harsh environments
The HYPER Series catalogue offers 26 hyperboloid sockets and 25 pins in 14 different pin dimensions, from 0.4mm diameter for signal contacts to 6.12 mm for high currents, with different termination types (crimp, solder cup, straight, open both ends and closed end) and platings.
Click on contact series for individual data sheets
| From 0.4 to 0.76 mm | From 1.00 to 1.50 mm | From 2. to 6.12 mm |
|---|---|---|
| 0.40 mm (0.016 in.) | 1.00 mm (0.039 in.) | 2.0 mm (0.079 in.) |
| 0.50 mm (0.020 in.) | 1.02 mm (0.040 in.) | 2.50 mm (0.098 in.) |
| 0.60 mm (0.024 in.) | 1.20 mm (0.047 in.) | 3.50 mm (0.12 in.) |
| 0.76 mm (0.030 in.) | 1.50 mm (0.059 in.) | 3.60 mm (0.14 in.) |
| 4.30 mm (0.17 in.) | ||
| 6.12 mm (0.24 in.) | ||
