Double-Ended / Wireless Test Receptacles

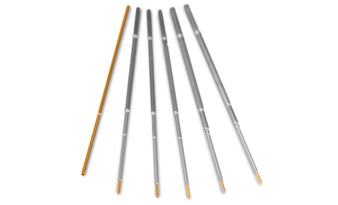

Offering two types of wireless receptacles, the R-100, R-075 and R-50C receptacles house a replaceable probe on the top end and have a permanent probe on the bottom end. These receptacles are designed for mixed center PCB test. The R-100/SS and R-SS/SS receptacles have replaceable probes on both sides and are designed for more general purpose wireless connections.

Download Brochure

Features & Benefits

  • R-50C-J-DE, R-075-J-DE, R-100-J-DE, R-100/SS and R-SS/SS Series receptacles
  • 0.050", 0.075" and 0.100" centers
  • 2.70 oz. spring force for R-50C, R-075 and R-100 Series
  • ≤ 1.555" (39.50 mm) overall lengths

Product Specifications

Receptacle Receptacle
OAL		 Max
Travel		 Centers Probe
R-50C-J-DE
Series		 1.555
(39.50)		 0.100
(2.54)		 0.050
(1.27		 ICT-50CSeries
S-50C Series
R-075-J-DE
Series		 1.555
(39.50)		 0.100
(2.54)		 0.075
(1.91)		 ICT-075 Series
S-075 Series
ICT-075 Lead Free Series
ICT-L075 Series
R-100-J-DE
Series		 1.555
(39.50)		 0.100
(2.54)		 0.100
(2.54)		 ICT-100 Series
S-100 Series
ICT-100 Lead Free Series
ICT-L100 Series
R-100/SS
Series		 1.290
(32.77)		 N/A 0.100
(2.54)		 ICT-100 Series
S-100 Series
SS/GSS Series
ICT-L100 Series
R-SS/SS
Series		 0.620
(15.75)		 N/A 0.100
(2.54)		 SS/GSS
Series

Dimensions are in inches (mm) | All specifications are subject to change.

Receptacle Tooling

Receptacle Insertion Tool
R-50C-J-DE Series RT-50
R-075-J-DE Series RT-1
R-100/SS Series RT-100
R-SS/SS Series RT-100
R-100-J-DE Series RT-100


View full tooling guide
