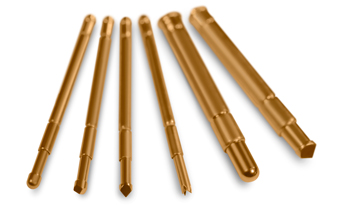

Double-Ended / Wireless Test Spring Probes

Double-ended probes feature both a top-side and bottom-side compliant plunger. Double-ended receptacles are available with a permanent bottom-side plunger and a replaceable probe on the top side. They are also available with both a top and bottom-side replaceable probe.

Request a Quote
Request More Info
Distributor Stock Check
Information about Restricted MaterialsRestricted Materials compliance logo

To find out if part number(s) meet regulatory substance or materials compliance (e.g., REACH, RoHS, or any other regulatory requirement). Contact us for compliance verification.

Features & Benefits

  • DE-50 and DE-100 Series probes
  • 0.050" and 0.100" centers
  • 3 A current rating
  • Spring force options between 2.00 and 3.00 oz.
  • 0.520" (13.21 mm) overall length

Product Specifications

Probe Centers Probe
OAL
Max
Travel
DE-50
Series
0.050" 0.520
(13.21)
0.080
(2.03)
DE-100
Series
0.100" 0.520
(13.21)
0.080
(2.03)

Dimensions are in inches (mm) | All specifications are subject to change.
