0.156" & 0.187" Centers High Current

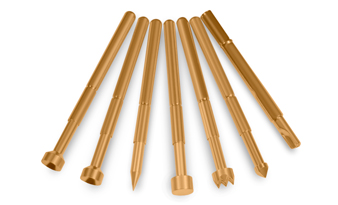

High Current Spring Probes

The SH Series features a bias ball, which is the most aggressive biasing technique to aid in assuring a low and consistent resistance, cycle after cycle. The SHE Series features a bias spring, an effective biasing technique for many applications.

Brochure

Features & Benefits

  • SH-4 and SHE-4 Series probes and receptacles
  • 21 A and 32 A current ratings
  • 10.00 oz. spring force
  • 1.330" (33.78 mm) overall length
  • IDI Spring Probe technology

Product Specifications

Probe Series Centers Probe OAL Max Travel Current Rating Mating Receptacle
SH-4      Series 0.156 (3.96) 1.330 (33.78) 0.250 (6.35) 32 A
Continuous		 RH-4
Series
SHE-4
Series		 0.187 (4.75) 1.330 (33.78) 0.250 (6.35) 21 A
Continuous		 RH-4
Series

Dimensions are in inches (mm) | All specifications are subject to change.

Receptacle Tooling

Receptacle Insertion Tool
RH-4 Series RT-4



Documents & Literature
