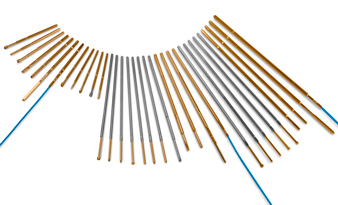

Features & Benefits S-0, SS-50, ICT-50C, S-50C, S-50C Rotator and ICT-50J Series probes and receptacles 3 A current rating Spring force options between 2.20 and 10.00 oz. ≤ 1.700" (43.18 mm) overall lengths Lead Free probe design is based on the ICT probes. The plunger material, plating and tip geometry have been optimized to provide less wear and contamination build-up while using a moderate spring force of 7 to 8 ounces. Rotator probes, ideal for non-clean and lead-free applications, rotate 90° at the rated travel, virtually drilling through contaminants with a low spring force.
Product Specifications Probe Probe OAL Max Travel Mating Receptacle S-0 Series 0.660 (16.76) 0.100 (2.54) R-0 Series SS-50 Series 0.610 (15.49) 0.070 (1.78) R-0 Series ICT-50C Series 1.362 (34.59) 0.250 (6.35) R-50C Series S-50C Series 1.362 (34.59) 0.250 (6.35) R-50C Series S-50C Rotator Series 1.362 (34.59) 0.250 (6.35) R-50C Series ICT-50J Series 1.700 (43.18) 0.250 (6.35) R-50J Series Dimensions are in inches (mm) | All specifications are subject to change.
Receptacle Tooling Receptacle Insertion Tool Crimping Tool R-0 Series RT-0 CP-0 (for 28-30 gage solid conductor) R-50C Series RT-50 CP-50C (for 28-30 gage solid conductor) R-50J Series RT-50 CP-50J (for 28-30 gage solid conductor) View full tooling guide
Documents & Literature Data SheetStep FilesUser GuideStandard Series 0.050 Centers949 kBS and ICT 50C Probes121 kBS and ICT 50J Probes130 kBS-0 Probes131 kBR-0 Receptacles135 kBR-50C Receptacles238 kBSS-50 Probes114 kBBoard Test Receptacle Tooling Guide75 kB
