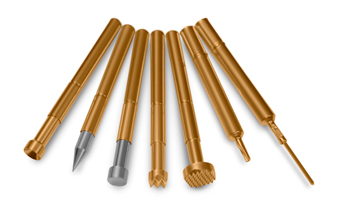

Features & Benefits S-5 Series probes and receptacles 5 A current rating Spring force options between 8.00 and 16.40 oz. 1.420" (36.07 mm) overall length IDI Spring Probe technology
Probe Probe OAL Max Travel Mating Receptacle S-5 Series 1.420 (36.07) 0.250 (6.35) R-5 Series Dimensions are in inches (mm) | All specifications are subject to change.
Receptacle Tooling Receptacle Insertion Tool Crimping Pliers R-5 Series RT-5 CP-5 (for 22-26 gage solid conductor) View full tooling guide
Documents & Literature Data SheetStep FilesUser GuideStandard Series 0.187_0.300 Centers1777 kBS-5 Probes99 kBR-5 Receptacles88 kBBoard Test Receptacle Tooling Guide75 kB
