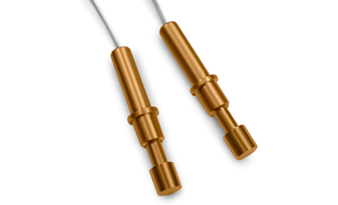

Thermocouple Probes

100895 Series Probes
Thermocouple probe is an ungrounded, thermally conductive probe used for the measurement of variations in temperature.The thermocouple probe's unique design ensures that the wires are internally fixed. This is done to prevent the two thermocouple wires from becoming dislodged from the plunger head cavity. This result is increased durability, which extends the service life of the probe.
Request a Quote
Request More Info
Distributor Stock Check
Information about Restricted MaterialsRestricted Materials compliance logo

To find out if part number(s) meet regulatory substance or materials compliance (e.g., REACH, RoHS, or any other regulatory requirement). Contact us for compliance verification.

Features & Benefits

  • 100895 Series probes
  • 0.156" centers
  • Two available temperature ranges: Type T up to 220°F, and Type K up to 350°F
  • 3.00 oz. spring force; 0.545" (13.84 mm) overall length
  • Ideal for  thermostat testing, or any application in which accurate local temperature local temperature data is needed
  • Recognized as a world leading provider for over 40 years

Product Specifications

Probe Centers Probe
OAL
Max
Travel
Temperature
Rating
100895
Series
0.156
(3.96)
0.545
(13.84)
0.060
(1.52)
Type T: up to 220°F
Type K: up to 350°F

Dimensions are in inches (mm) | All specifications are subject to change.
