M23 Series Connectors

Robust M23 Power & Signal Circular Connectors

Smiths Interconnect's M23 Connectors offer the transmission of signals, data and power safely using just one connector in a compact and robust design. The series is mainly used for connecting electrical drives and industrial automation applications. They are very easy to handle and operate.

Hypertac® hyperboloid contact technology ensures immunity to shock and vibration, low insertion and extraction forces, minimal contact resistance, long contact life and high current ratings.

Features & Benefits

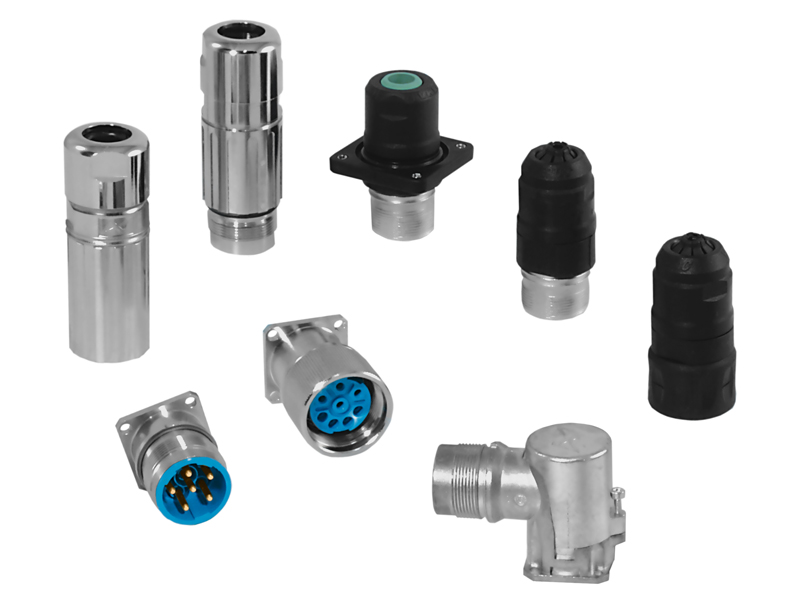

The M23 robust power and signal connector system is available in two qualities, Industrial and Stainless Steel.

The Smiths Interconnect M23 Industrial Signal and Power Connectors in favor of motor drive applications. For the installation, crimp contacts are used which guarantee high quality of the connection, reducing the installation costs at the same time. Hyperboloid contact technology is ideally suited for use in harsh and demanding environments where high reliability and safety are critical. The electrical and mechanical characteristics of the contact ensure unrivalled performance in terms of reliability, number of mating cycles, low contact forces and electrical stability over time.

The Smiths Interconnect environmentally sealed M23 Stainless Steel connectors have been specifically developed for applications operating in highly corrosive environments. Manufactured from high grade stainless steel and advanced polymers, these connectors are ideally suited for use in the Medical, Pharmaceutical, Maritime, Automotive and Food and Beverage Industries. Environmentally sealed to IP67 and chemically resistant to both Lye and Acids, these connectors are protected against the harshest of Industrial processing environments. In addition our M23 connector system offer outstanding electro-magnetic compatibility protection through a 360° screen connection.
