Hypertac Green Connect

High Power Contact Technology

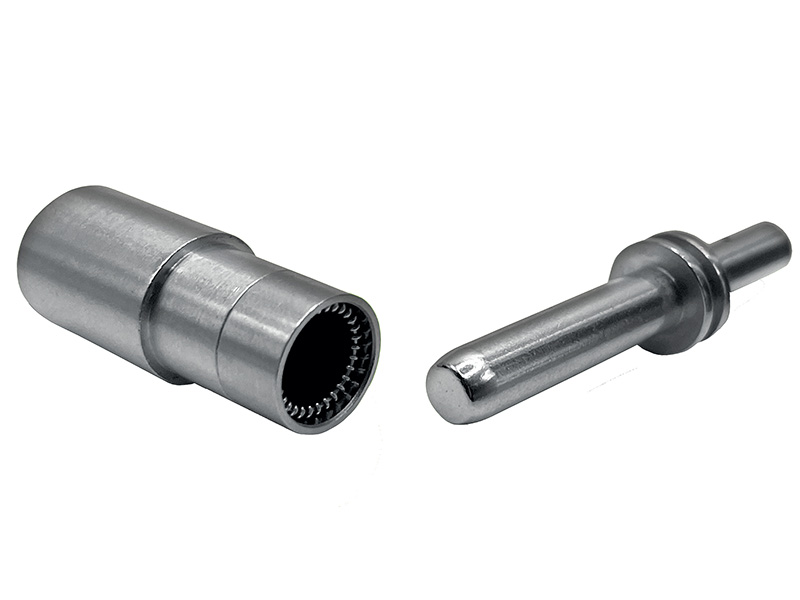

Hypertac Green ConnectTM Contact Technology offers a Lead-free and Beryllium-free high power contact solution with unparallel low contact resistance. The lower contact resistance of the Hypertac Green Connect hyperboloid contact reduces heat build-up allowing the contacts able to handle far greater current in smaller contact assemblies without adversely effecting temperature rise. Thanks to the improved crimp design of the socket offering an increased contact area between the contact body and the multi-stranded cable, Hypertac Green ConnectTM solution can offer an unrivalled low contact resistance.

To learn more, access our on demand webinar: New Premium Hyperboloid High Power contacts for reduced power loss in Battery Systems.




Brochure

Features & Benefits

  • Unrivaled premium hyperboloid contact with improved crimp design
  • High current carrying capacity (300 Amps with a temperature rise < 50°C) capable of up to 90% energy transfer at 500 Amp overload mode even after 10,000 insertion/withdrawal cycles when compared with other technologies.
  • Low Contact Resistance from 25 μΩ (40 μΩ after aging) for size 8 mm contact.
  • Up to 60,000 mating cycles and low insertion and extraction force.
  • Self cleaning contact action
  • Fully RoHS and REACH compliant materials without exceptions: no SVHC or Beryllium copper used.

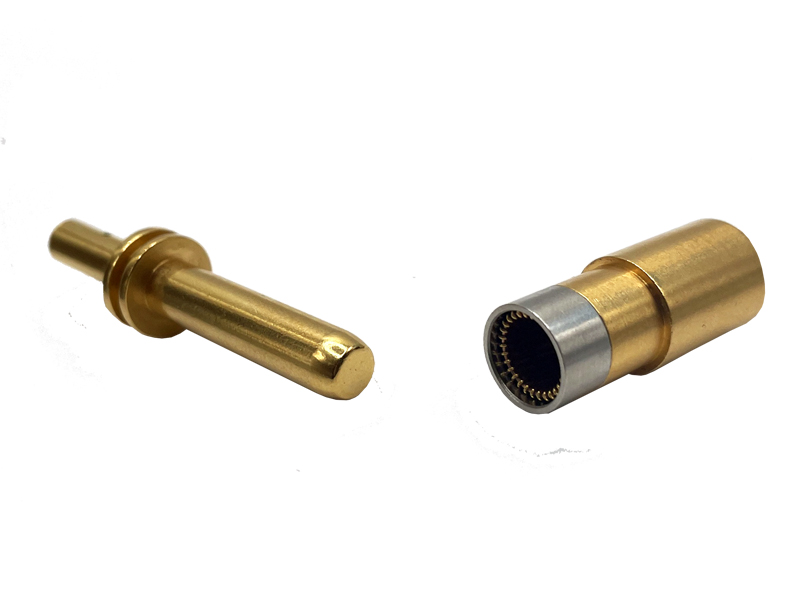

  • Premium Gold over Nickel plating option available for harsh environments
  • Sizes of crimp and lug terminations can be modified upon request
  • Patent pending

Documents & Literature

Related News

  • Image of Hyperboloid

    Hyperboloid

    The shape of the contact sleeve is formed by hyperbolically arranged contact wires, which align themselves elastically as contact lines around the pin, providing a number of linear contact paths.
