Features & Benefits Intermateable and Interchangeable with standard non-filter connectors Meet or exceed all applicable requirements of military specifications Offered in a number of different contact arrangements and shell sizes C, L, Pi filter types Filtering technology (Planar Arrays, Discoidal) to suit application Unfiltered (high speed) and ground lines Transient Protection proven to RTCA D160F Section 22 levels 3,4 & 5 Protection against primary lightning, EMI and EMP

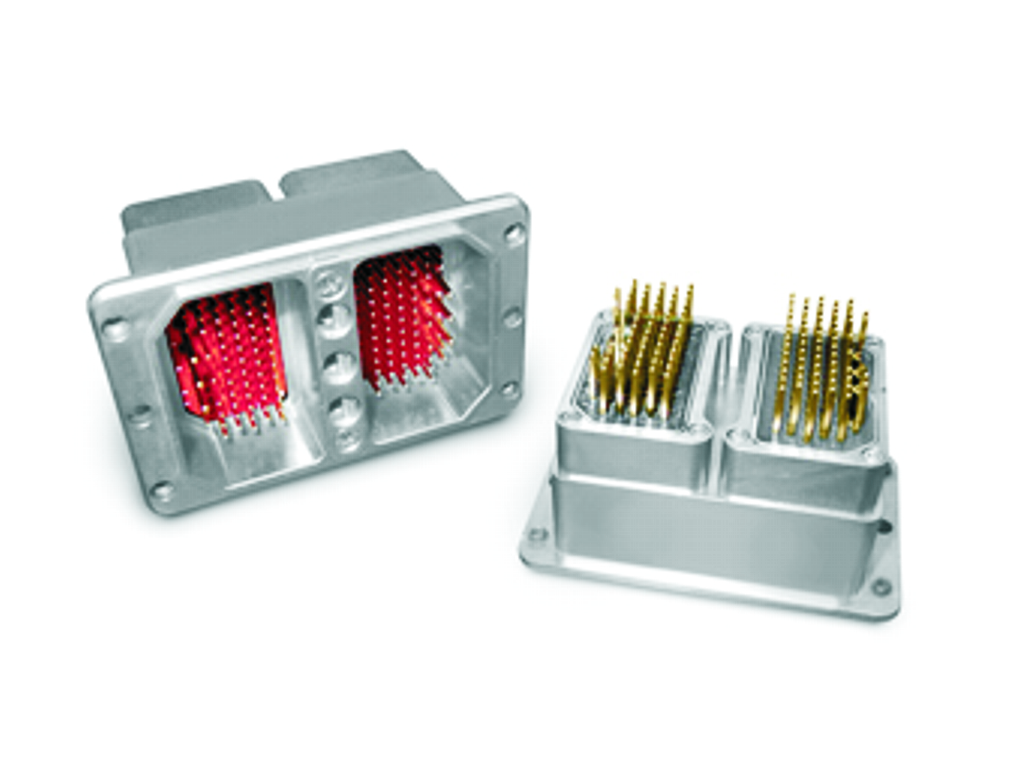

OverviewFiltered rack and panel connectors include ARINC 404, ARINC 600 and MIL-DTL-83527 shell styles. Filtered rack and panel connectors are designed to meet or exceed all applicable requirements of each series and are intermateable and interchangeable with standard non-filter connectors. Non-Filter applications can easily be upgraded to EMI/Transient protection without modification to the system through Smiths Interconnect's In-Line filter adapters. The adapters are designed to be installed between the existing plug and receptacle without having to re-wire or disassemble the system.
Documents & Literature ArticleCatalogFilter Capacitor Comparision125 kBAdvantages of EMI Filter Connectors116 kBFilter Rack and Panel Connectors (US)4605 kBFilter Circular Connectors (A4)6024 kB
