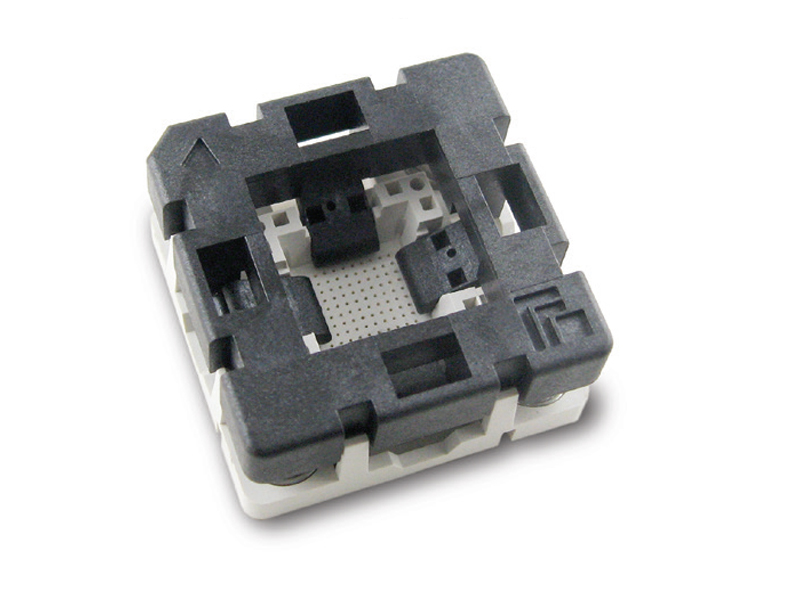

R-Series H-Pin® Socket

The R-Series product line is an open-top reliability socket used for accelerated life testing. With versions of the compression mount open-top design available as a drop-in replacement for other legacy products on the market, there is no need to purchase new burn-in boards. The open-top design allows for autoloading, and un-loading of the integrated circuit. The small socket footprint outline allows you to utilize the full resources available in the burn-In system for each burn-in board.

Download Brochure

Features & Benefits

  • Industry-proven design, In-house tooling, molding and machining with 100% automated assembly.
  • Extensive catalog of components, configurable options
  • H-Pin offers unmatched DC performance

Feature Options

  • Auto IC loading / un-loading compatible
  • High temperature materials for above 200 °C applications
  • Drop-in replacement for legacy products

Series Info


  • 5 mm to 9 mm package size range for QFN, LGA, and BGA


  • 10 mm to 14 mm package size range for QFN and LGA
  • 10 mm to 13 mm package size range for BGA
  • Drop in replacement for legacy designs


  • 16 mm to 19 mm package size range for QFN, LGA, and BGA

H Pin Technology

Each socket uses the H-Pin contact technology providing wide RF performance capabilities and exceptional DC characteristics. The Q-Series socket checks all the boxes: high frequency, high current, high temperature, low inductance, and low loss. These features contribute to lower the cost of tests.
