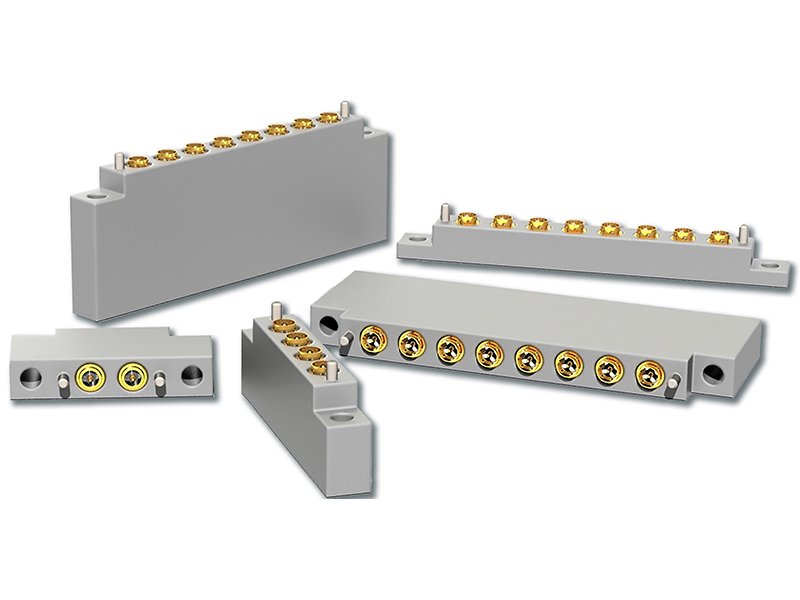

- One-piece Coax for Parallel Board to Board high speed signaling (up to 40GHz)
- High Density (3.0 mm pitch) and Low Profile (down to 3.30 mm height)
- Fully compliant double-ended spring-loaded Coax
- Integrated fully in PCBs, does not require soldering nor mating connectors
- Low cost of ownership, with ease of rework and assembly.
| Attribute​ | Spec ​ | Units​ | Comments​ | |
|---|---|---|---|---|
| Impedance ​ | 50​ | Ohms​ | +/- 10%​ | |
| Mating Cycles ​ | 1000​ | Cycles​ | ​ | |
| Current Capacity​ | 1​ | A​ | DC​ | |
| Voltage Rating​ | 60​ | V rms​ | ​ | |
| Dielectric Withstanding Voltage​ | 500​ | V​ | DC​ | |
| Insertion Loss​ | ≥-1​ | dB ​ | 10MHz to 40 GHz​ | |
| Return Loss​ | ≤-15​ | dB​ | 10MHz to 40 GHz​ | |
| NEXT​ | < -60​ | dB​ | 10MHz to 40 GHz​ | |
| FEXT​ | < -60​ | dB​ | 10MHz to 40 GHz​ | |
| Temperature Range​ | -55 to 165​ | ° C​ | ​ | |
| Outgassing ​ | TML​ | 0.50​ | CVCM​ | 0.17 ​ |
| Vibration​ | 10 to 2000​ | Hz​ | EIA-364-28, Condition VI, 53.79 g rms​ | |
| Shock​ | 100​ | G​ | IEC 60068-2-27 Half Sine, 100G​ | |
| Qualification Standard​ | ​ | ​ | ​Qualified in accordance to ESCC 3402 Issue 5​ | |
