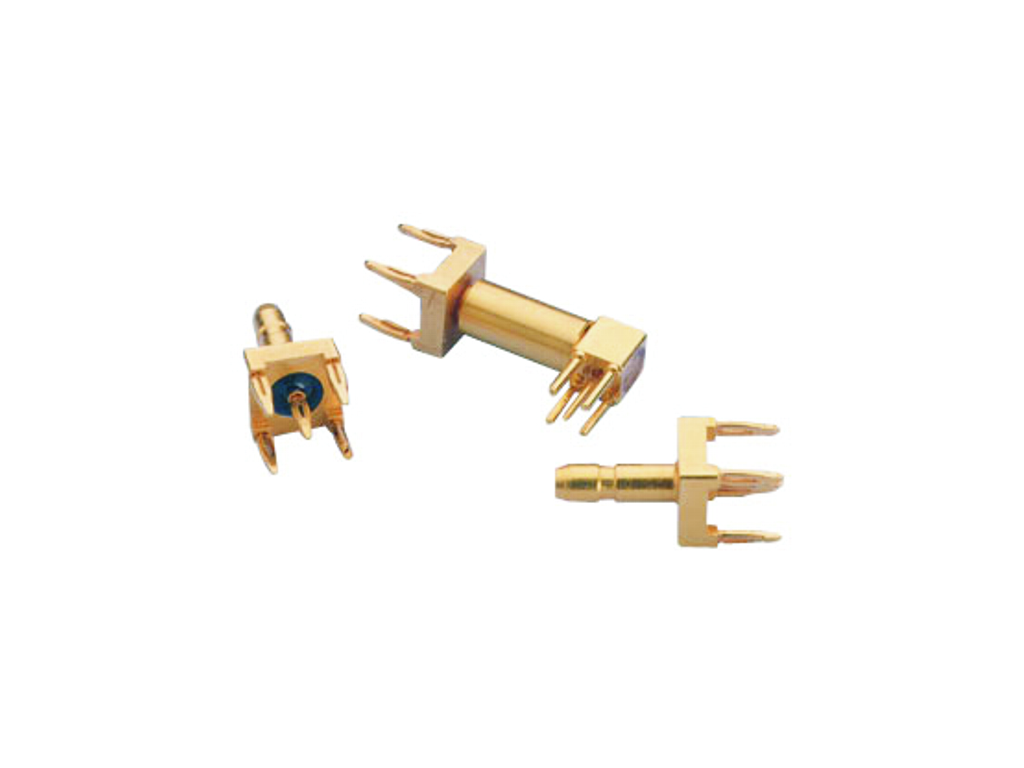

Standard Coax Contacts

MIL-DTL-38999, ARINC 404 and ARINC 600

Smiths Interconnect's coax contacts provide small size for high density packaging. They are ideal for RF and microwave applications for instruments, radar, communciations and RF shielding.

Request More Info

Applications

Commercial Aerospace

  • Avionics
  • SATCOM Connectivity
Commercial Aerospace Overview

Defense

  • Communications
  • EW
  • ISR
  • Radar
Defense Overview

Industrial

  • Test & Measurement
Industrial Overview

Medical

  • Imaging Systems
Medical Overview

Features & Benefits

Coaxial contacts provide flexibility in the design of high frequency RF and micro-wave applications. The contacts, including sizes 5, 8, 9, 12 and 16 and have the same outline dimensions as traditional power contacts that fit various insert arrangements for d-sub, circular, and rack and panel connectors. The coaxial cable type contacts are designed for low-loss concentric 50 and 75 Ohm cable types. An innovative design of coax contacts opens a whole new world of design options. These small, rugged contacts have a VSWR rating of 1.3:1 max with a frequency range from DC to 5 GHz.

  • Small size for high density packaging
  • Ideal for RF and microwave applications for instruments, radar, communications, and RF shielding
  • Interface Dimensions for MIL-DTL-38999, ARINC 404 and ARINC 600 Per SAE-AS39029
