HPH Series

High Density Signal PCB Connector

HPH series is a high density interconnect available up to 303 contacts with multiple hardware choices and backpotting option.With a 0.6mm contact diameter, the HPH Series comes in 3-6 row configurations and is available up to 303 signal contacts on a 1.901mm staggered grid. Contacts are removable for ease of maintenance.

Request a Quote
Download Brochure
2D/3D Configure (New)

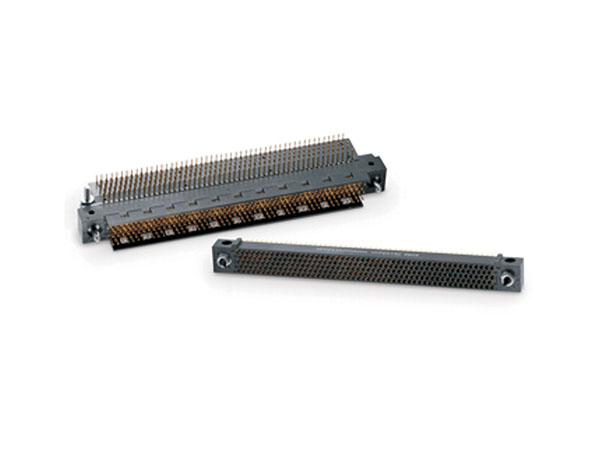

Product Image
Request a Quote
Technical Specification
Request More Info
2D/3D Configure (New)
Information about Restricted MaterialsRestricted Materials compliance logo

To find out if part number(s) meet regulatory substance or materials compliance (e.g., REACH, RoHS, or any other regulatory requirement). Contact us for compliance verification.

Features & Benefits

  • High density signal PCB connectors
  • Pin size/current: 0.6mm/4 amp; 1.905mm pitch
  • 20 to 303 contact positions

Overview

Using the proven Hypertac® hyperboloid contact system, the connectors ensure a low contact resistance under high levels of shock and vibrations and over 2000 mating cycles. They provide low engagement and withdrawal force; long life and low rate of wear for high reliability and enhanced quality performance.
