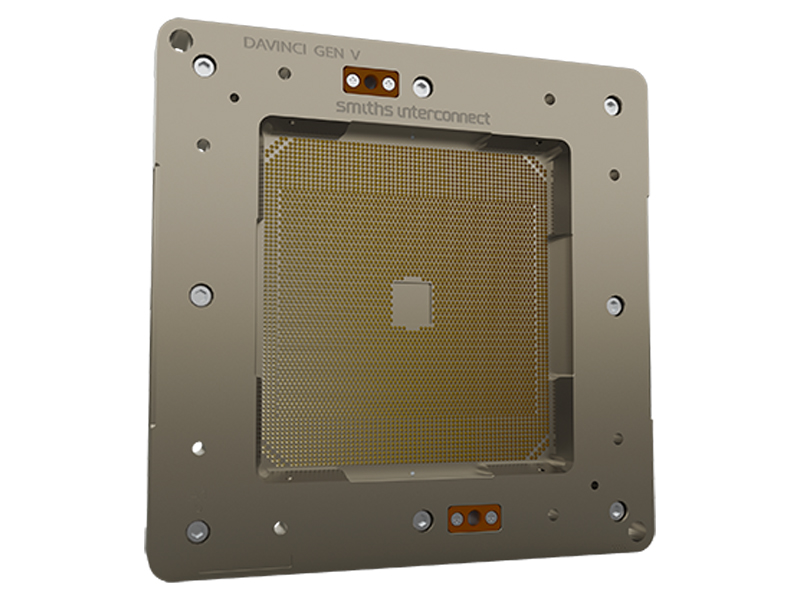

Engineered to overcome these challenges, the DaVinci Gen V coaxial test socket provides an out-of-box solution for full functional testing of cutting-edge ASICs. Its precision design guarantees unmatched signal integrity, eliminating measurement errors while delivering lab-grade accuracy and repeatability in production environments.
Product features:
- Solution for BGA, LGA and other variants
- Spring probe technology using homogeneous alloy with gold plated for better grounding
- RF bandwidth > 84 GHz @ -1dB IL
- Short signal path 4.90 mm test height
- Impedance tuned to match system
- Consistent stable contact resistance 55 mΩ (Avg.)
- Hi-coplanarity accommodation
- Tri-temp socket design to support -55 °C to +150 °C
- Designed for manual test, bench test, and HVM production test using the same socket
- New manufacturing process to top and bottom cartridge
Benefits:
- Design adaptation to meet requirement
- Long contact life, tested to 500K insertions
- Impedance can match system or defined as needed
- Excellent DC performance
- Patented insulated metal socket housing for optimal signal integrity performance and strength
- Precision-machined socket housing ensures robust mechanical performance
- Field repairable, replace a single probe or full array
- Cleaning can be done while the system is running, using a cleaning surrogate
