RF Filter Datasheets
Smiths Interconnect is committed to providing technically advanced, high quality “state-of-the-art” RF Filters, Multiplexers, Switched Filter Banks, and Integrated assemblies, from 100 KHz to 65 GHz. All products are subject to the same rigorous design, manufacturing, and inspection criteria.
Download datasheets for Planar X, Ceramic, Cavity and Discrete Filter products below or download all datasheets in zip file here.

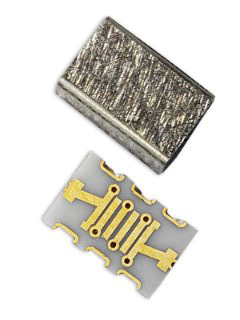

| Planar X Filters | ||||||
.jpg?lang=en-US) |
Product Series | Center Frequency | Bandwidth | Temperature Range | Power Handling | Data Sheet |
| Ka-Band Planar X Filter | 28000 MHz | 1000 MHz | -55 to 85 deg. C | 1 W | ||
| K -Band Planar X Filter | 15000 MHz | 6000 MHz | -55 to 85 deg. C | 1 W | ||
| X-Band Planar X Filter | 12800 MHz | 12 GHz | -55 to 100 deg. C | 1W | ||
| X-Band Planar X Filter | 10000 MHz | 4 GHz | -55 to 100 deg. C | 1 W | ||

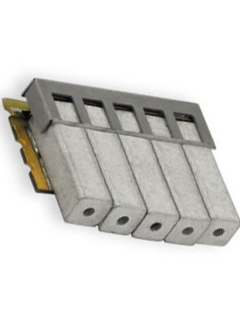

| Ceramic Filters | ||||||
.jpg?lang=en-US) |
Product Series | Center Frequency | Bandwidth | Temperature Range | Power Handling | Data Sheet |
| UHF Ceramic Filters | 800 | 75 | -20 to 70 deg. C | 1W | ||
| L-Band Ceramic Filters | 1575 | 40 | -20 to 70 deg. C | 1W | ||
| S-Band Ceramic Filters | 2500 | 500 | -20 to 70 deg. C | 1W | ||

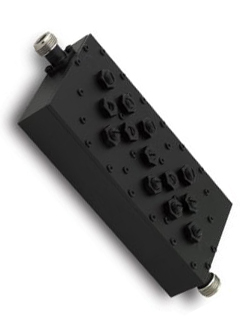

| Cavity Filters | ||||||
.jpg?lang=en-US) |
Product Series | Center Frequency | Bandwidth | Temperature Range | Power Handling | Data Sheet |
| C-Band | 6 GHz | 400 MHz | -55 to 85 deg. C | 10 W | ||
| X-Band | 10 GHz | 2000 MHz | -55 to 85 deg. C | 10 W | ||
| Ku-Band | 15 GHz | 3000 MHz | -55 to 85 deg. C | 10 W | ||
| K-Band | 22 GHz | 6000 MHz | -55 to 85 deg. C | 10 W | ||
| Ka-Band Waveguide | 35 GHz | 600 MHz | -45 to 85 deg. C | 1 W | ||
| Discrete Filters | ||||||
 |
Product Series | Center Frequency | Bandwidth | Temperature Range | Power Handling | Data Sheet |
| L-Band | 1500 MHz | 800 MHz | -55 to 85 deg. C | 1 W | ||
| S-Band | 3000 MHz | 2000 MHz | -55 to 85 deg. C | 1 W | ||
