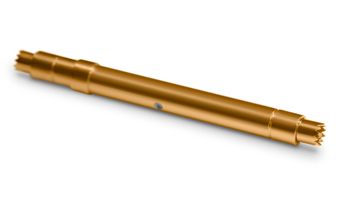

Double-Ended Coaxial Probe

Smiths Interconnect offers a wide range of Spring Contact Probes to meet your testing needs and has been recognized as a world leading provider for over 40 years.

Features & Benefits

Smiths Interconnect offers the industry's most extensive line of high reliability coaxial probes. Our coaxial probes provide a low noise, controlled impedance signal path with reliable and easy connect/disconnect options.

  • 101097 Series probes
  • 0.200" centers
  • 50 Ω impedance (75 Ω or other impedance designs available)
  • Compliant on both ends
  • Bandwidths of 3 GHz for coax probes with shielding plungers
  • Bandwidths of 500 MHz for non-shielded designs
  • IDI Spring Probe technology

Probe Centers Probe
OAL
Max
Travel
Impedance
101097
Series
0.200
(5.08)
1.673
(42.49)
0.075
(1.91)
each end
50 Ω

Dimensions are in inches (mm) | All specifications are subject to change.
