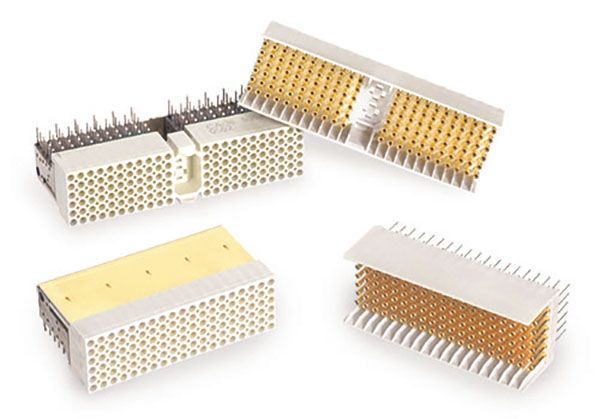

2mm / cPCI Series

Rugged 2mm footprint cPCI backplane system

Rugged 2mm backplane connector system is a compliant PICMG Compact PCI standard solution that provides engineers with an advanced interconnect system to address the requirements of mission-critical applications within commercial aerospace, space and defense market segments.

Request a Quote
Technical Specification
Request More Info
3D Configure
Distributor Stock Check
Information about Restricted MaterialsRestricted Materials compliance logo

To find out if part number(s) meet regulatory substance or materials compliance (e.g., REACH, RoHS, or any other regulatory requirement). Contact us for compliance verification.

Features & Benefits

  • Interchangeable with cPCI COTS Systems
  • Modular design for standard 3U/6U configurations
  • Immune to shock and vibration fretting
  • Available in NASA GSFC qualified versions
  • Reverse gender to commercial 2mm products
  • Keying feature for proper mating
  • EMI/RFI shielding

Overview

The cPCI connectors utilize the superior Hypertac hyperboloid contact technology, which known for its immunity to shock and vibration fretting. Configured on a 2mm center-line with six rows, the 0.4 mm Hypertac contacts in the backplane provide a current rating of 1 A and data rate performance up to 3.125 Gbps with less than 8 mΩ contact resistance. Built in reverse gender configuration versus COTS hard metric connectors, the system is available with 95 and 110 way version. The solution is fully interchangeable with Compact PCI COTS (commercial off the shelf) systems, complies with IEC 1076-4-101, and it is the only cPCI connectors approved by NASA for spaceflight.

Case Study

Smiths Interconnect's 60+ Years of Space Heritage

We have a long history of working with space program engineers to ensure reliability and help bring their state-of-the-art ideas to life. We have proudly delivered failure-free performance in numerous spaceflight programs. Smiths Interconnect designs compact and reliable products suitable for launchers, satellites, manned space flight and ground systems support. Our solutions use space approved materials and controlled processes for minimum mission lifetimes of 15 to 20 years.
