KVPX Series

Space Qualified Rugged High Speed, VITA Backplane Connectors

KVPX Series is an embedded interconnect system that provides unrivaled performance in harsh environments while adapting to the VITA standard design requirements. KVPX Series is a shielded, high-density, high-speed, modular interconnect system optimized for differential pair architectures on a 1.8mm x 1.35mm grid.

Download Brochure

Features & Benefits

  • High Speed up to 16 Gbps
  • Compatible with VITA 46, 47 and 78 (Space) standards
  • Flexible modular design for standard 3U and 6U as well as custom configurations
  • Faceplate to protect daughtercard pins; press-fit termination

Overview

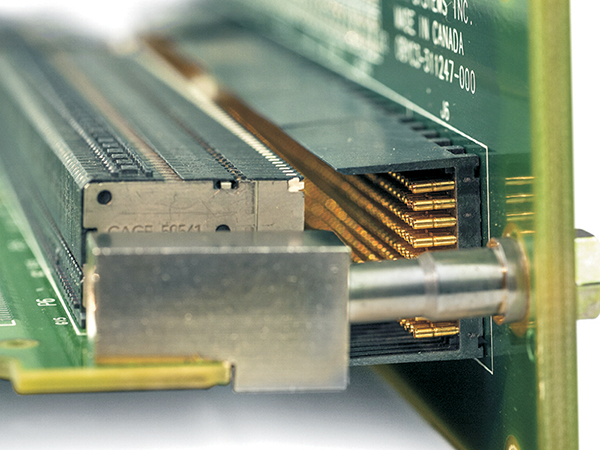

The waferized daughter-card assembly also provides single-ended and power wafer options. The backplane modules are available in 8 and 16 row increments on a 1.8mm x 1.8mm grid, with user-configurable keying and integrated stainless steel guide pin/keys.

The KVPX connector platform offers the ability to scale from 80 Mbps to over 10 Gbps while retaining the same Vita 46 backplane slot pitch at 20.3mm to 25.4mm. KVPX backplane connectors utilize 0.4mm Hypertac hyperboloid space qualified sockets, known to provide immunity to shock and vibration fretting, numerous linear paths of contact, low-forces, high mating cycles, and a self-wiping cleaning action that results in consistently better integrity in extreme environments.The KVPX daughtercard connectors incorporate a front face plate which prevents damage to the male contacts in an unmated condition.

KVPX is best suited and positioned for data intensive applications where high throughput and high computes are the critical factors. Intelligence, Surveillance & Reconnaissance (ISR), Signals Intelligence (SIGINT), radar applications and Electronic Counter Measures (ECM).

Related Videos

Related Products

  • Image of SpaceNXT™ Aurora Series

    SpaceNXT™ Aurora Series

    COTS Plus 2mm hard metric connector for Compact PCI applications of Commercial Aerospace, Space and Defense markets.

  • Image of PCB Cable Mount Twinax Connectors

    PCB Cable Mount Twinax Connectors

    Complete line of  differential Twinax and Quadrax connectors offer data rates exceeding 2 Gbit/sec and a bandwidth up to 3 Ghz and can be driven via matched impedance differential pair interconnections.

Related News

  • Image of High performance backplane connectors for space

    High performance backplane connectors for space

    This webinar will focus on Smiths Interconnects' newly space qualified KVPX Backplane Connector. KVPX connectors are qualified to EEE-INST-002 Level 1 and are equipped with Hypertac® space-qualified 0.4 mm hyperboloid sockets and provide immunity to shock and vibration fretting, numerous linear paths of contact, low-forces, high mating cycles, and a self-wiping cleaning action that results in consistently better integrity in extreme environments.

  • Image of BGA electrical interface

    Understanding the Test Criteria of Optical Fiber Transceivers Used in Space

    In space, high performance components must be able to deliver reliably in the punishing environment. It is optical transceivers that drive transmissions, converting signals to and from a copper-resident format. Fiber optics communications provide high bandwidth and low latency signaling. Signal transmissions through fiber optic cables (FOCs) provide immunity to EM/RFI interference, crosstalk, and voltage level surges. Fiber optics’ accuracy and reliability exceeds traditional cabling. Covering 1,000 feet requires four pounds of FOC versus 39 pounds of copper wiring, and fiber optics also consume less energy than copper. To convert electrical signals from circuitries with copper output to fiber optics, optical fiber transceivers are usually required.

  • Widget Image ALT

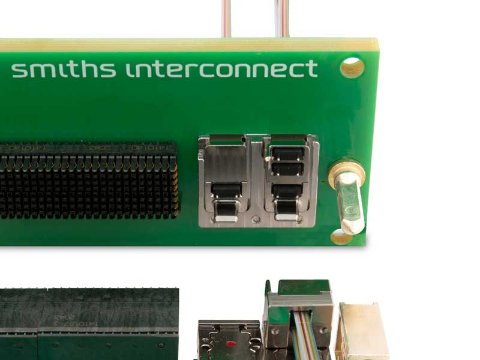

    New blind mate active optical interconnect
