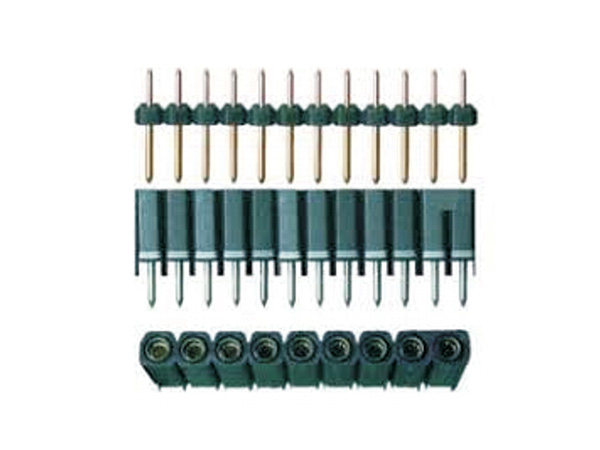

RBA Series

Single row PCB connector

Smiths Interconnect's RBA series is a rugged stick header that can be cut to sizes up to 27 positions

Product Image
No data found

Features & Benefits

Smiths Interconnect’s RBA Series is a single row PCB connector meeting the requirements of Test and PCB stacking applications in harsh environments of the industrial and medical markets.

With a 0.76mm contact diameter, the series is available up to 27 signal gold or tin plated contacts with straight PCB and cable mounting terminations. Using the Hypertac® hyperboloid contact technology, the RBA series features with low contact resistance, improves system reliability by ensuring high levels of shock and vibration and guarantees than 100,000 mating cycles.

  • Pitch: 2.0 to 4.0 mm
  • Contact Positions: Up to 50
  • Contact Termination: Straight Through Board Solder (TBS)
  • Nominal Current: 4A to 7A
