MW Waveguide to Coaxial Transitions

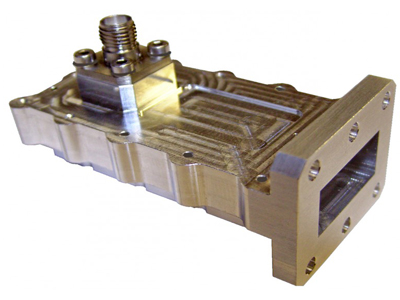

Waveguide to coaxial transitions are an integral capability of the business. Smiths Interconnect offers a choice of connector type and orientation, pin/socket interfaces to waveguide apertures with a choice of standard or custom flange details.

Download Brochure

Features & Benefits

Offering a choice of “dc coupled” in line and orthogonal and “ac coupled” orthogonal types. For certain applications dc coupled transitions are most commonly used where thermal characteristics are a key design consideration.

These stand-alone products can be integrated with waveguide or coaxial isolators to form iso-adapters. Smiths Interconnect’s capability and experience extends from 1.2 GHz (ATC radar) to 46 GHz for a space applications.

  • Waveguide flange detail
  • Connector type and orientation
