Q-Series H-Pin® Socket

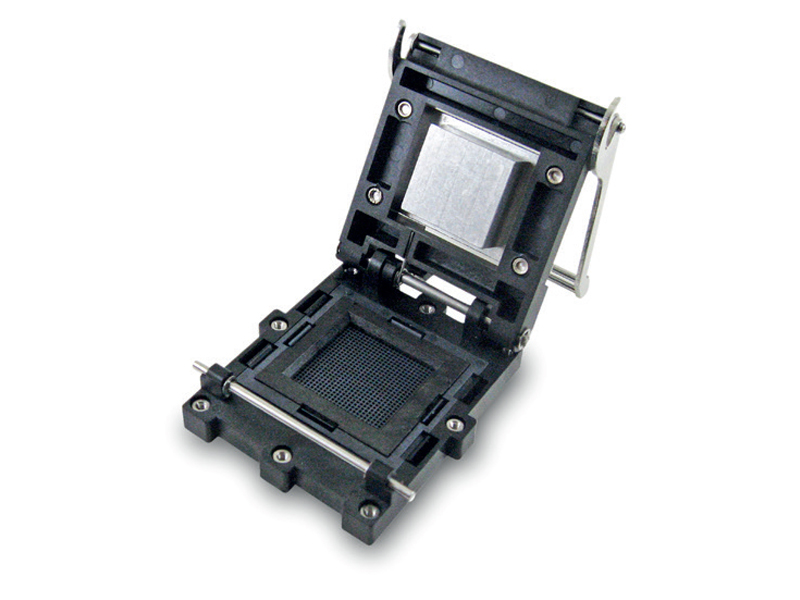

The Q-Series socket is available for mid to large package sizes. The Q-Series is a fully molded socket body and lid designed to meet the rigors of a wide variety of accelerated life testing applications. The lid can be configured with or without a heatsink for precise thermal response and with the aid of design simulation air channels are optimized to maintain accurate temperature throughout testing.

Download Brochure

Features & Benefits

  • Industry-proven design, in-house tooling, molding, and machining, with 100% automated assembly.
  • Extensive catalog of components, configurable options
  • H-Pin offers unmatched DC performance.

Feature options

  • Heat sink
  • HAST venting features Integrated thermal control with heater and sensor
  • Reverse seating plane
  • Max component clearance under the DUT
  • 2 or 3 plate systems
  • High temperature materials for above 200°C applications

H Pin Technology

This socket also uses the H-Pin contact technology providing wide RF performance capabilities and exceptional DC characteristics. The Q-Series socket checks all the boxes: high frequency, high current, high temperature, low inductance, and low loss. These features contribute to lower the cost of tests.
