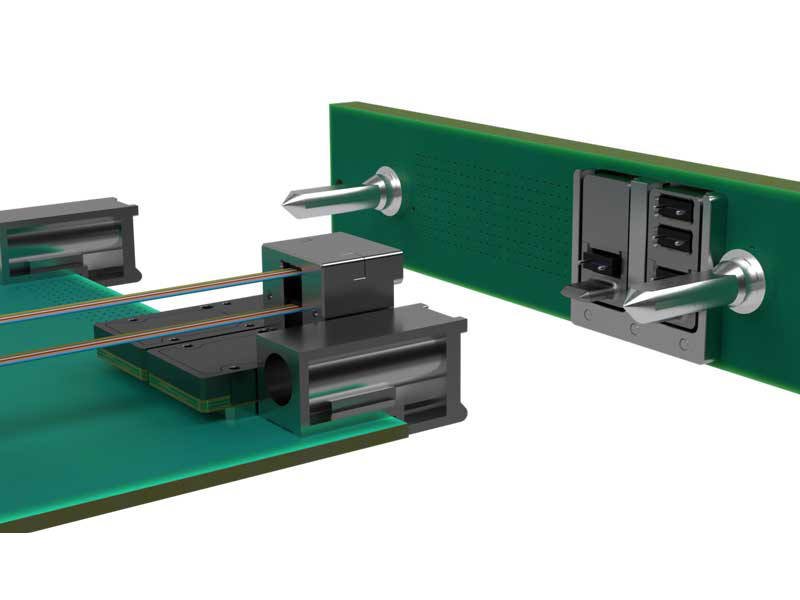

LightCONEX 28G LC series Style C hybrid
The LightCONEX® solution for VPX systems is a revolutionary active blind mate optical interconnect that includes a fixed active plug-in mode connector and a floating backplane connector all compatible with the VITA 66.5 standard and aligned to the SOSA® Technical Standard.
View DetailsLightCONEX 28G LC series Style D
The LightCONEX® solution for VPX systems is a revolutionary active blind mate optical interconnect that includes a fixed active plug-in mode connector and a floating backplane connector all compatible with the VITA 66.5 standard and aligned to the SOSA® Technical Standard.
View DetailsLightCONEX 28G LC series Style C
The LightCONEX® solution for VPX systems is a revolutionary active blind mate optical interconnect that includes a fixed active plug-in mode connector and a floating backplane connector all compatible with the forthcoming VITA 66.5 standa the VITA 66.5 standard and aligned to the SOSA® Technical Standard.
View DetailsLightCONEX 10G LC series 12TRX Style A
The LightCONEX® solution for VPX systems is a revolutionary active blind mate optical interconnect that includes a fixed active plug-in mode connector and a floating backplane connector all compatible with the VITA 66.5 standard and aligned to the SOSA® Technical Standard.

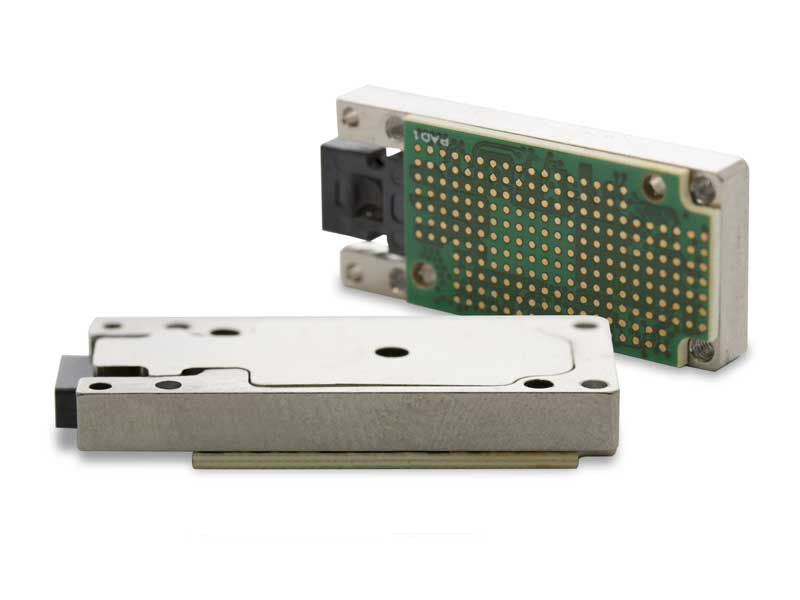

View DetailsLightABLE 10G LL series 12TRX
The low profile LightABLE™ 10G LL Series screw-in module (4.5 mm) mounts to the board via a 1 mm LGA connector (interposer). It is offered as (12+12)-lane transceiver. These modules operate at 10.3125 Gbps per channel over a recommended operating temperature range of −40 °C to 85 °C at ultra-low bit error rates of 10-12.

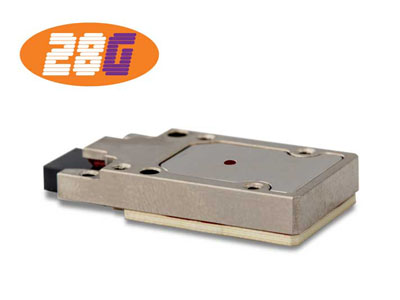

View DetailsSpaceABLE 28G SL series 4TRX, 12TX, 12RX
The SpaceABLE® 28G SL Series radiation resistant transceivers are engineered to withstand radiation doses >100 krad (Si). The SpaceABLE 28G SL Series low profile screw-in module mounts to the board via an LGA connector (interposer). It is offered as a either a (4+4)-lane transceiver 28G (100G full-duplex) or as separate 12-channel transmitter and 12-channel receiver modules (300G half-duplex, as a pair) that operate at up to 28 Gbps per channel over a recommended operating temperature range of –40 ºC to 85 ºC at ultra-low bit error rates of 10-9.

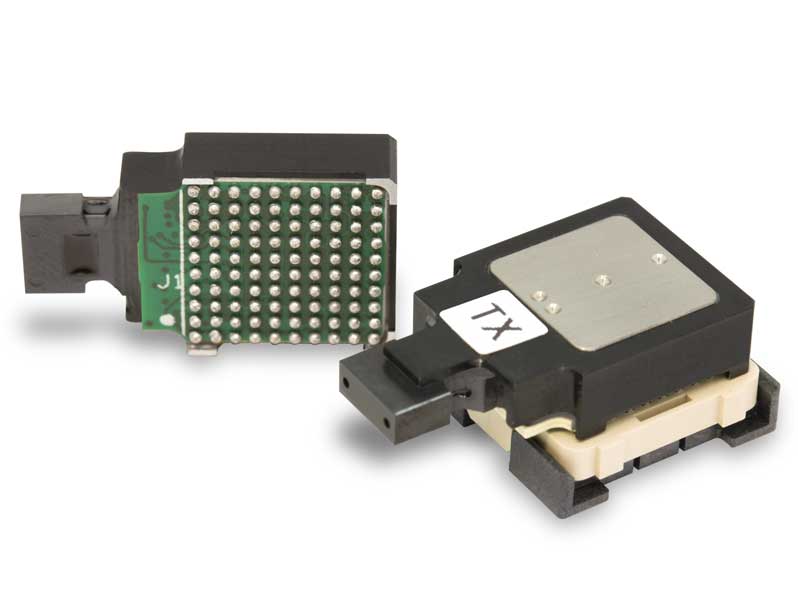

View DetailsLightABLE 10G LM series 4TRX, 12TX, 12RX
The low profile LightABLE™ 10G LM Series module (5 mm) is offered as a (4+4)-lane transceiver, a 12-channel transmitter, or a 12-channel receiver. The modules can be mounted directly upon a high-speed printed circuit board via surface mountable 1.27 mm pitch BGA or via a MEG-array connector. All modules operate at 10.3125 Gbps per channel over a recommended operating temperature range of −40 °C to 85 °C at ultra-low bit error rates of 10-12.

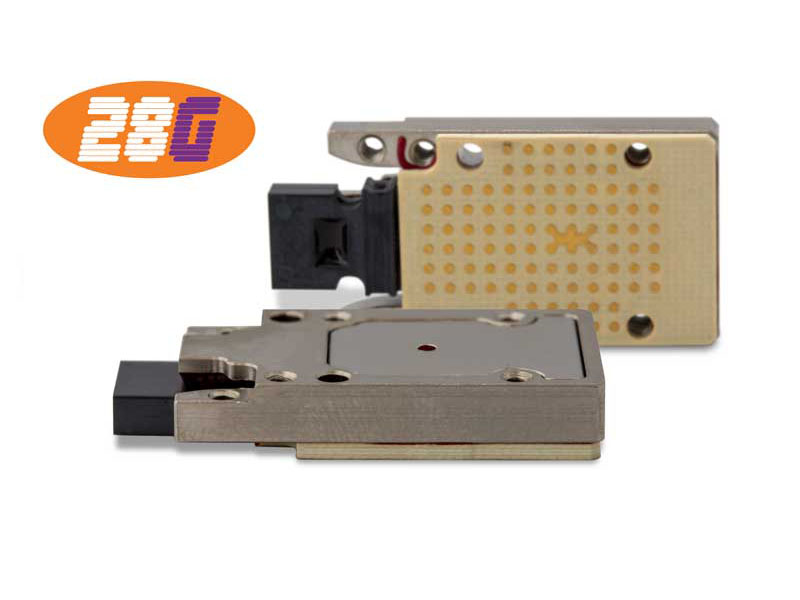

View DetailsLightABLE 28G LL series 4TRX, 12TX, 12RX
The LightABLE™ 28G LL Series low profile screw-in module mounts to the board via an LGA connector (interposer). It is offered as either a (4+4)-lane transceiver (100G full-duplex) or as separate 12-channel transmitter and 12-channel receiver modules (300G half-duplex as a pair) that operate at up to 28 Gbps per channel from −40 °C to 85 °C at ultra-low bit error rates of 10-12.
View DetailsLightABLE 28G LL series MPO 4TRX
The LightABLE™ 28G LL Series low profile MPO module mounts to the board via an LGA connector (interposer). It is offered as a (4+4)-lane transceiver (100G full-duplex) that operates at up to 28 Gbps per channel from −40 °C to 85 °C at ultra-low bit error rates of 10-12.
View DetailsSpaceABLE 10G SL series 4TRX, 12TX, 12RX
The low profile radiation resistant SpaceABLE™ 10G SL Series screw-in module (4.5 mm) mounts to the board via an LGA connector. It is offered as a (4+4)-lane transceiver, a 12-lane transmitter, or a 12-lane receiver. All modules operate at 10.3125 Gbps per lane from –40 ºC to 85 ºC at ultra-low bit error rates of 10-12.

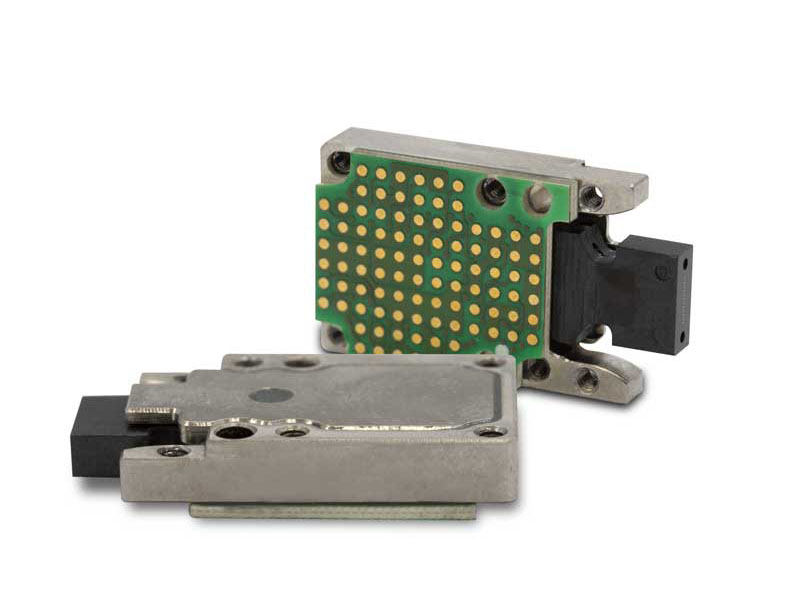

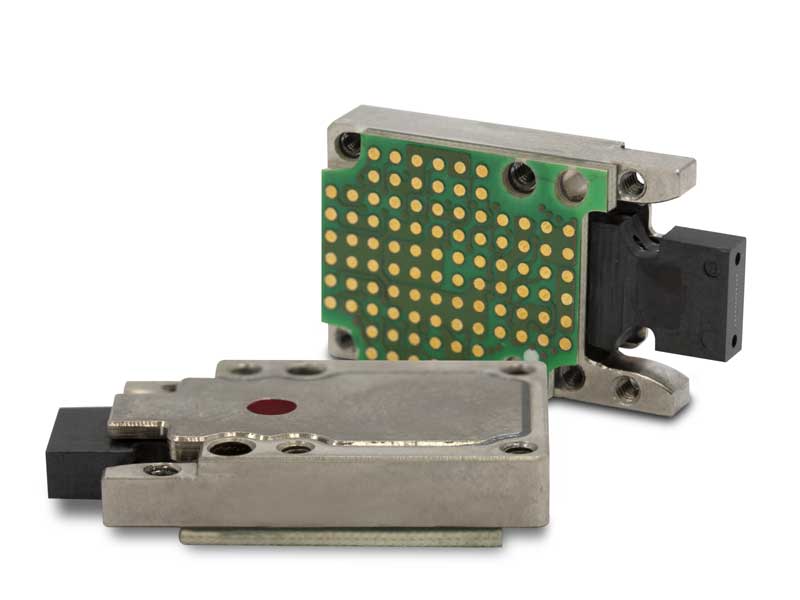

View DetailsLightABLE 10G LL series 4TRX, 12TX, 12RX
The low profile LightABLE™ 10G LL Series screw-in module (4.5 mm) mounts to the board via a 1 mm LGA connector (interposer). It is offered as a (4+4)-lane transceiver, a 12-channel transmitter, and a 12-channel receiver. All modules operate at 10.3125 Gbps per channel over a recommended operating temperature range of −40 °C to 85 °C at ultra-low bit error rates of 10-12.
View DetailsLightABLE 10G LL series MPO 4TRX, 12TX, 12RX
The low profile LightABLE™ 10G LL Series MPO module (4.5 mm) mounts to the board via a 1 mm LGA connector (interposer). It is offered as a (4+4)-lane transceiver, a 12-channel transmitter, and a 12-channel receiver. All modules operate at 10.3125 Gbps per channel over a recommended operating temperature range of −40 °C to 85 °C at ultra-low bit error rates of 10-12.
View DetailsMicroclip MT Ferrule
The proprietary MicroClipâ„¢ is a low-profile, low-mass spring loaded mechanical assembly that offers a rugged optical connection that is resistant for shock and vibration and is suitable for harsh environment.
