0.020" & 0.030" Centers

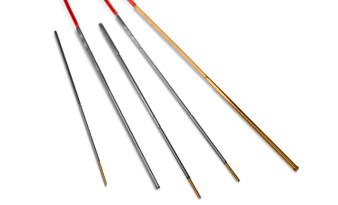

Micro Series Spring Probes

The Micro Probe Series ranges in pitch from 0.20" (0.51 mm) to 0.030" (0.76 mm) and are typically between 0.50" to 1.00" in length. Smiths Interconnect offers a wide range of Spring Contact Probes to meet your testing needs and has been recognized as a world leading provider for over 40 years.

Features & Benefits

  • Fine pitch applications
  • Quad-0 and Quad-00 Series probes and receptacles
  • Between 0.30 and 0.50 A current ratings
  • 0.70 to 0.75 oz. spring forces
  • ≤ 0.900" (22.86 mm) overall lengths
  • IDI Spring Probe technology

Product Specifications

Probe Probe
OAL
Max
Travel
Mating
Receptacle
Quad-00
Series
0.740
(18.80)
0.100
(2.54)
Quad-00
Series
Quad-0
Series
0.900
(22.86)
0.100
(2.54)
Quad-0
Series
