Backplane Twinax Connectors

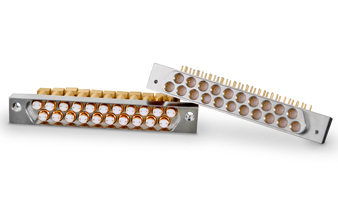

We have taken the standard housing configuration of the P1 & P3 mounting dimensions while incorporating true differential pair contacts within the P1 & P3 dimensional constraints. P1 connector housing contains 21 position true differential pair blind mate contacts allowing board designers to carry high density differential pair signals from the LRU via motherboard to daughter-card plug in modules with a single connector P1 type housing.

Technical Specification
Notice to California Residents: PROPOSITION 65 WARNING
To find out if part number(s) meet regulatory substance or materials compliance (e.g., REACH, RoHS, or any other regulatory requirement) for compliance verification.

Use of standard VME bus architecture cages for high speed fibre channel connection.
Bandwidth: Up to 3 Gigahertz
P1 and P3 Mounting dimensions
Board to board high speed data transfer
Matched Impedance Differential Pair Twinax & Quadrax
Data sampling rates exceeding 2 Gbits/second
21 position true differential pair blind mate contacts
150 and 100 Ohm matched impedance

Rugged D-Sub with Twinax/Quadrax contacts

Split pair quadrax is the next generation contact that provides robust high-speed performance compatible with existing qualified rugged D-Sub connectors.
Fibre Channel D-Sub

Utilizing a multi-finger ground spring fixed around the shell to provide a multi-point contact engagement that affords superior EMI shielding.
Micro Quadrax/Twinax

Feature matched impedance miniaturized connectors that provide the user with controlled impedance and tightly spaced PCB footprint spacing.
