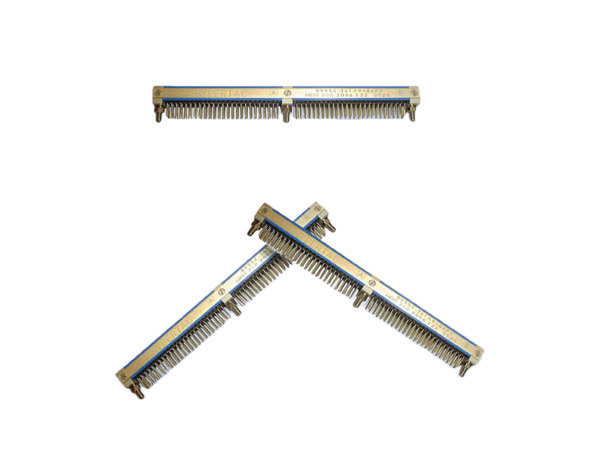

MDD Series

High density PCB Connectors

Featuring the Hypertac® hyperboloid contact technology, MDD Series are high density board to board interconnects. MDD is available in 100 and 200 positions.

Brochure 2D/3D Configure

Features & Benefits

  • Signal contacts
  • Housing with ruggedized metal shell
  • High density: 100 and 200 signal contacts
  • Featuring Hypertac Hyperboloid contact technology

Overview

The MDD Series has been designed to resist the high levels of shock and vibrations in the harshest environments of the Commercial Aerospace. The MDD is a metal shell connector available with a 100 and 200 signal contacts configuration. With a 0.5mm contact diameter, with straight, surface mount tail and 90° termination styles. The metal shell improves system reliability by ensuring high levels of shock and vibration and by eliminating contact fretting, hence reducing wear rates, and avoiding system failure and down-times.
