M-Series H-Pin® Socket

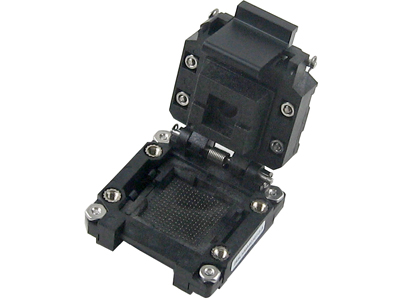

M-Series socket has long been the gold standard for reliability and out-of-the-box performance burn-in sockets. The high-quality components have been refined and enhanced over their lifetime for optimum performance and the highest quality. M-Series being one of the most mature products in the portfolio does not mean it lacks technology. In fact, quite the opposite, the M-Series offers all the same configurable features and high performance H-Pin contact technology to exceed performance expectations of the most demanding applications. The M-Series has been trusted to deliver uncompromised performance generation after generation. The small outline footprint provides design flexibility and allows for high socket density on the burn-in board.

Download Brochure

Features & Benefits

  • Industry-proven design, in-house tooling, molding, and machining, with 100% automated assembly.
  • Extensive catalog of components and configurable options
  • Proven track record of reducing the cost of test leveraging modular components, automated assembly, and short lead times.
  • Exceptional electrical performance provides wide RF bandwidth.

Feature Options

  • Spring loaded plunger
  • Heat sink
  • HAST venting features
  • Integrated thermal control with heater and sensor
  • Reverse seating plane
  • Max component clearance under the DUT
  • 2 or 3 plate systems
  • High temperature materials for above 200 °C applications
