Galileo Test Socket

Low-profile Test Socket

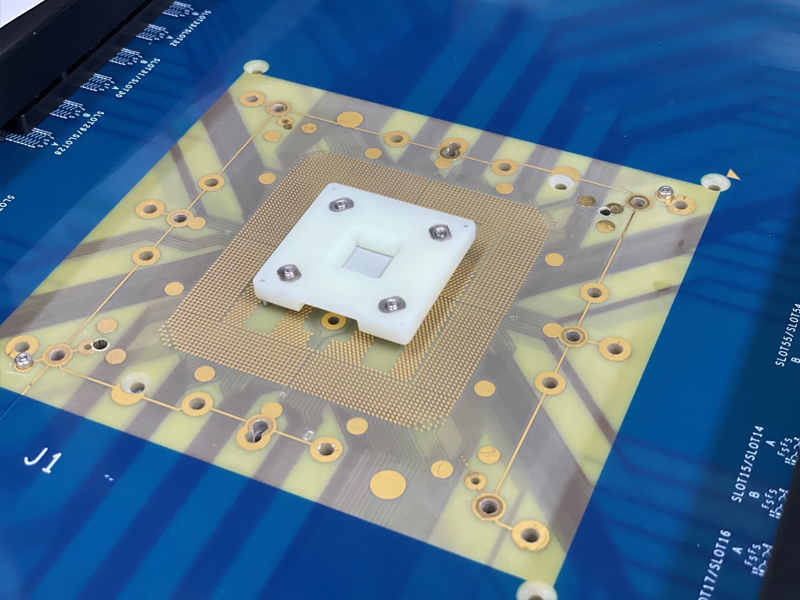

Galileo is an innovative, low-profile test socket that provides outstanding electrical and mechanical performance for IC test customers who need a cost effective, rapid delivery solution. Combining a universal interconnect fabric material with advanced 3D manufacturing processes, Galileo enables low-volume, rapid turn-around-time production of test sockets for a wide variety of IC test applications.

Request a Quote
Request More Info
Information about Restricted MaterialsRestricted Materials compliance logo

To find out if part number(s) meet regulatory substance or materials compliance (e.g., REACH, RoHS, or any other regulatory requirement). Contact us for compliance verification.

Features & Benefits


Patented, low profile contact
  • Solderless memory replacement
  • Short signal path
  • Conformal to recessed LGAs
High speed signal integrity
  • Electrically transparent contact
  • High frequency bandwidth > 40GHz
  • Low inductance
Durability
  • No PCB or solder ball damage
  • Minimal labor and tester downtime
Engineering expertise
  • Monte Carlo Analysis
  • Thermal Analysis
  • RF Simulation

Galileo is an advanced “quick-turn universal” test socket that leverages elastomeric technology, delivers industry-leading electrical performance with unprecedented lead time. Suitable for benchtop, characterization, debug, and failure analysis applications where a high-performance socket is needed, Galileo delivers previously un-attainable speed in socketed test availability, helping users to get tests completed on time, every time.



Technical Characteristics


Mechanical Properties
Applicable Pitch 0.35mm and up
Galileo Z Hieght 0.394mm nominal, +/- 6.5% (0.368 to 0.419mm)
Compressed  to 65% 0.257mm nominal, +/- 6.5% (0.240 to 0.274mm)
Test travel to 35%:  0.138mm nominal +/- 6.5%  (0.129 to 0.147mm)
Test force

BGA ~12-28g per ball @ 35% compression
LGA ~240g per mm² compressed area  @ 35% compression

Max Operating Temp 125° C
Insertion Life 5000 Insertions
Electrical Properties
Insertion Loss (S21) 40 GHz @-1dB
Contact Resistance <25 mΩ
Inductance 0.080 nH
Thermal Resistance 188.1 K/W
Capacitance 0.075 pF
Impedance (TDR): 47Ω
Thermal Conductivity 75.8 W/(m*K)
 Rise Time Delay (TDT) 3ps
Current Carrying Capacity (CCC) 16A /mm² steady state @ 10° C heat rise
