Semi-Rigid Cable Assemblies

Space Qualified Cables

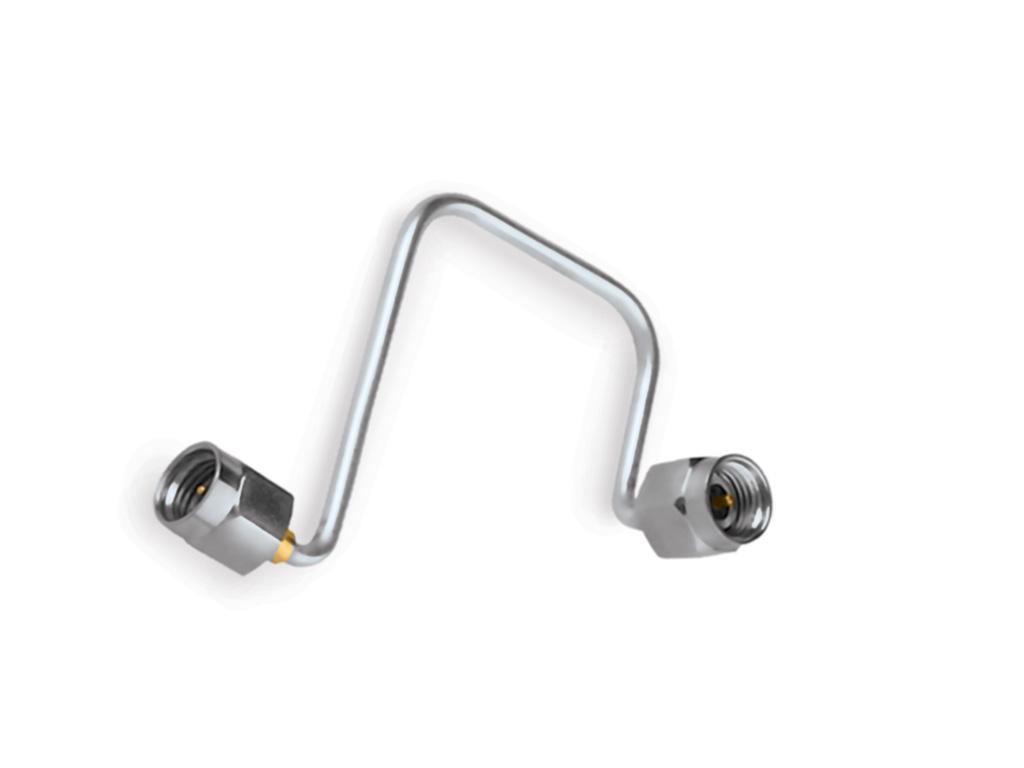

Semi-Rigid space qualified cables are available with a copper or aluminum jacket, available with a selection of different platings and 4 different diameters:(.047”, .085”, .141” & .250”). High frequency RF cable assemblies are available with a wide variety of flexible and semi-rigid cable types with space orbit qualifications and are well-suited for Satellite Payloads (GEO/MEO and LEO constellations), Deep Space Probes, Ground Antenna Networks and Space Robotic Systems.

Features & Benefits

  • Mode Free Operation 60 to 65 GHz
  • Superior Shielding Effectiveness
  • Phase Matched Sets Available (standard tolerance is ± one degree per GHz)
  • Light Weight & High Vibration Resistance
  • Stainless Steel Connectors Available
  • On-demand Solutions According to Customer Specifications
  • Subjected to Extensive Space Qualifications
  • Mil-Spec Cables RG-402  (per PN: M17/130-RG402) and RG-405 (per PN M17/133-RG405)

Overview

The Conformable® or hand formable (BJ - Braided Jacket), has a tin filled braid with a metal foil underlay and is also available in the same diameters as the Semi-Rigid type. Semi-Rigid .047 diameter Semi-Rigid cable is often used as an interconnect without connectors. The exposed center conductor and outer jacket are soldered directly to the circuits being connected.

Several subminiature connectors also mate well with this diameter and are used where space is at a premium and high loss can be tolerated. Semi-Rigid RG405 .086 diameter is the most common size Semi-Rigid cable. This size matches well with miniature high frequency connectors such as 2.4mm and SMP. The use of an aluminum jacket will allow final shaping at the installation site. Smiths Interconnect cable assemblies are Space Qualified and available unbent or shaped to your specifications. Semi-Rigid AL085 086 diameter is the most common size Semi-Rigid cable. This size matches well with miniature high frequency connectors such as 2.4mm and SMP.

The use of an aluminum jacket will allow final shaping at the installation site. Our cable assemblies are Space Qualified and available unbent or shaped to your specifications. 141 Size Family The .141" size is the most popular due to the improved insertion loss over the .085" sized products. The .141" cable offers a good match with most connector types and the .036" diameter center cable conductor can be used as the center pin of an SMA plug type connector with the semi-rigid and conformable versions. These features allow for mode free performance up to 35 GHz

Related Products

  • Image of Semi-Formable Cable Assemblies

    Semi-Formable Cable Assemblies

    The Low-Loss line of Semi-Rigid cables are perfect when the low-loss of a premium flexible cable is desired but it makes more sense for a Semi-Rigid assembly in your application.

  • Image of Standard Coax Contacts

    Standard Coax Contacts

    The coax contact series fit standard MIL-DTL-38999, d-sub s and ARINC size standard rack & panel connector cavities.

  • Image of Phase Stable Cable Assemblies

    Phase Stable Cable Assemblies

    Lab-Flex T cable is the ultimate solution for those testing conditions which require the minimum phase change during temperature and mechanical flexure.

  • Image of Hand-Formable Cable assemblies

    Hand-Formable Cable assemblies

    Conformable cables (hand formable) have a tin filled braid with a metal foil underlay and is also available in the same diameters as the Semi-Rigid type.

  • Image of SMPM Mini-Lock Connectors

    SMPM Mini-Lock Connectors

    Mini-Lock connector offers high frequency connector for harsh-environments. The connector has a compact lightweight robust system and features a xx-points contact design for superior electric reliability.
