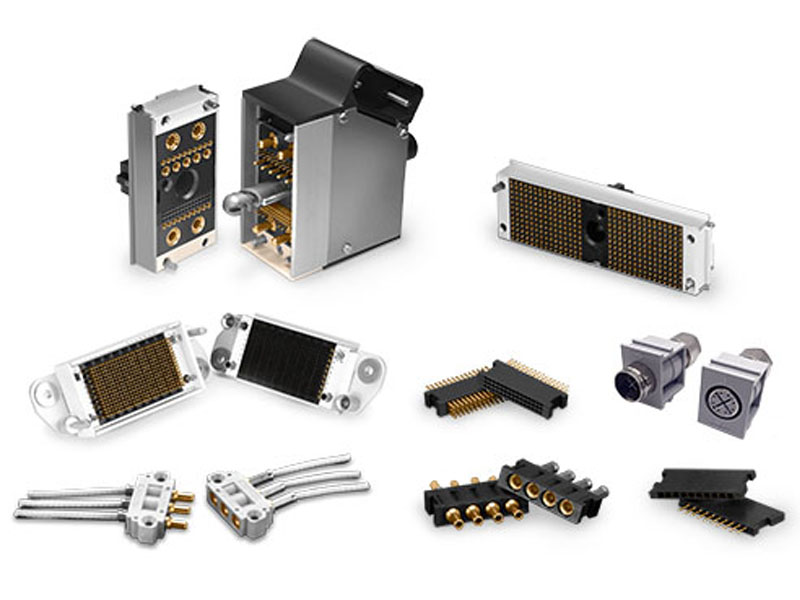

N Series

High Density Mini-Modular Connectors
The N Series of mini modular, high density connectors offers a variety of combinations in a single connector frame. It employs a do-it-yourself system based on the building block principle, which allows users to select the connector design that meets their specific requirements through off-the-shelf components.
Request a Quote
Technical Specification
Request More Info
3D Configuration
Distributor Stock Check
Information about Restricted MaterialsRestricted Materials compliance logo

To find out if part number(s) meet regulatory substance or materials compliance (e.g., REACH, RoHS, or any other regulatory requirement). Contact us for compliance verification.

Features & Benefits

  • Provides up to 900 contacts in a single connector
  • Removable signal and coax contacts
  • Cable to chassis, cable to cable, rack & panel
  • Metal backshell with adjustable cable clamp
  • Float mountable for blind mating

Overview

The N Series provides a high density, modular rack & panel connector solution that includes coax and high current contacts up to 25 amps, and allows for up to 900 contact positions. These connectors are used in the most demanding of applications where the environment requires durability, ruggedization and extended operating life.

Utilizing the Hypertac contact technology, the interconnects offer high numbers of mating cycles (up to 100,000) combined with low insertion and extraction mating forces, as well as unsurpassable immunity to shock and vibration. The modular building block system enables for custom connectors with large numbers of contacts to be configured in to a single frame. Therefore, the user is capable of selecting and customizing the connector to fulfill the exact requirements with off the shelf components and shortened lead times.
